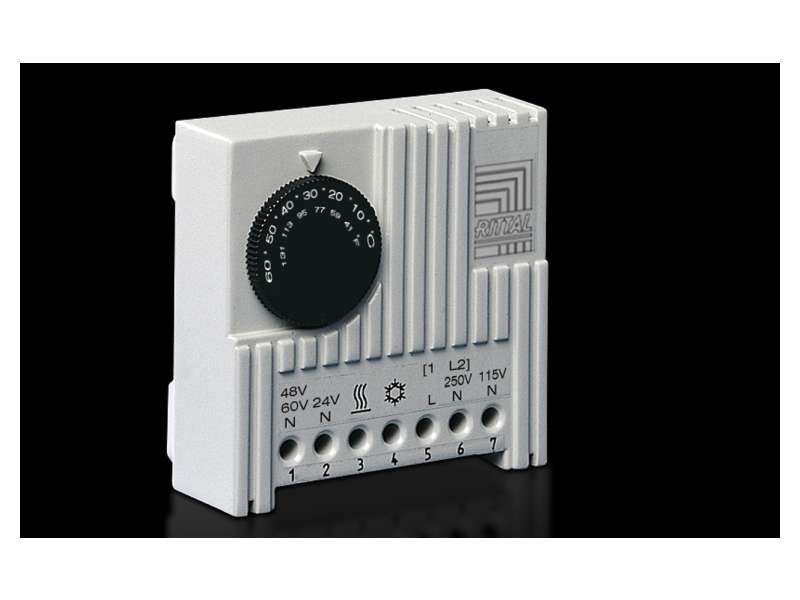

Rittal SK TERMOSTAT | 3110000
Particularly suitable for controlling fans, heaters and heat exchangers, this thermostat can also be used as a signal generator for monitoring the enclosure internal...
VAT-exclusive price: 4.502,26 |
VAT-inclusive price: 5.402,71 |
Particularly suitable for controlling fans, heaters and heat exchangers, this thermostat can also be used as a signal generator for monitoring the enclosure internal temperature.
| Product description | Thermostat, enclosure internal thermostat, 24-230 V, 1~, 24-60 V (DC), Colour RAL 7035, WHD: 71 x 71 x 33.5 mm |
|---|---|
| Benefits | Time-saving connection using terminal strip with screw connection from the outside. Flexible mounting on vertical/horizontal 35 mm support rail to EN 50 022, or snap fastening in enclosure section or on mounting plate using supplied adaptor. |
| Technical specifications | Bi-metal controller with thermal feedback. Contact population: Single-pole change-over contact (quick-break). Permissible contact load: Category 5–3 (heating) AC 10 (4) A inductive load (cos φ=0.6); Category 5–4 (cooling) AC 5 (4) A inductive load (cos φ=0.6); DC max. 30 W. Switching difference: approx. 1 K ± 0.8 K. |
| Colour | RAL 7035 |
| Setting range | 5 °C...60 °C |
| Dimensions (W x H x D) | 71 x 71 x 33.5 mm |
| Rated operating voltage | 24 V - 230 V, 1~, 24 V - 60 V (DC) |
| Packs of | 1 pc(s) |
| Net weight | 0,095 kg |
| Gross weight | 0,12 kg |
| Customs tariff number | 90321020 |
| EAN | 4028177036598 |
| ETIM 9 / 8 | EC004587 |
| ECLASS 8.0 | 27210707 |
