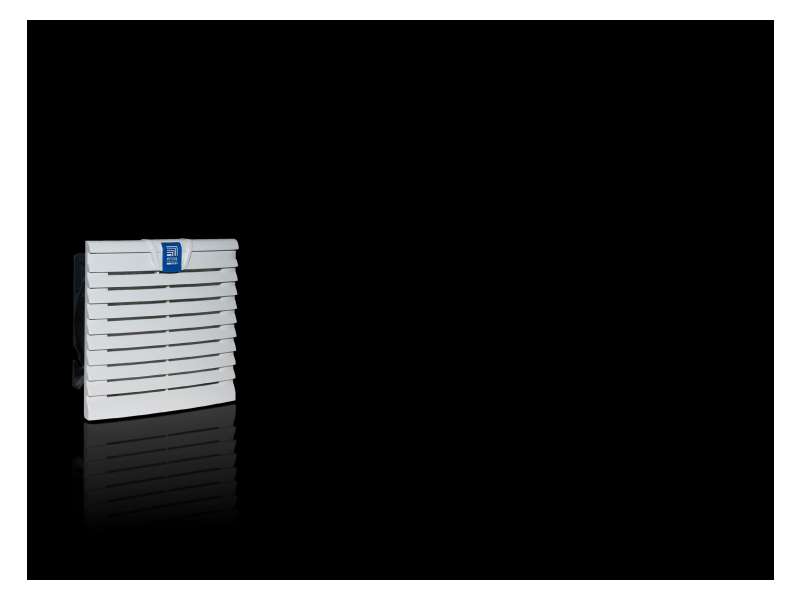

Rittal SK VENTILATOR 55m3/h, 230V, 148.5mm, RAL7035 | 3238100
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54....
VAT-exclusive price: 14.650,01 |
VAT-inclusive price: 17.580,01 |
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54.
| Product description | SK Fan-and-filter unit TopTherm, 52/63 m³/h, 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm. Diagonal fan technology ensures superior pressure stability and even heat dissipation. |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes |
Complete unit ready to install Chopped-fibre filter mat |
| Fan type | Axial, shaded pole motor |
| Air throughput, unimpeded airflow |
With chopped-fibre filter: 50 Hz: 52 m³/h, 60 Hz: 63 m³/h With pleated filter: 50 Hz: 63 m³/h, 60 Hz: 72 m³/h |
| Air throughput with outlet filter |
1 x 3238200: 36/42 m³/h 2 x 3238200: 46/54 m³/h |
| Rated operating voltage | 230 V, 1~, 50/60 Hz |
| Power consumption Pel | 50 Hz: 15 W, 60 Hz: 14 W |
| Rated current max. | 50 Hz: 0.12 A, 60 Hz: 0.09 A |
| Dimensions (W x H x D) | 148.5 x 148.5 x 16 mm |
| Installation depth | 58.5 mm |
| Mounting cut-out | Width: 124 mm, Height: 124 mm |
| IP protection category |
IP 54 with chopped-fibre/pleated filter IP 56 with chopped-fibre/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre/pleated filter Type 3 Type 3R Type 4 Type 4X with chopped-fibre/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | 50 Hz: 46 dB(A), 60 Hz: 49 dB(A) |
| Service life of fans (L10, 40 °C) | 68,200 h |
| Packs of | 1 pc(s) |
| Net weight | 0.9 kg |
| Gross weight | 0.9 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177651692 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
