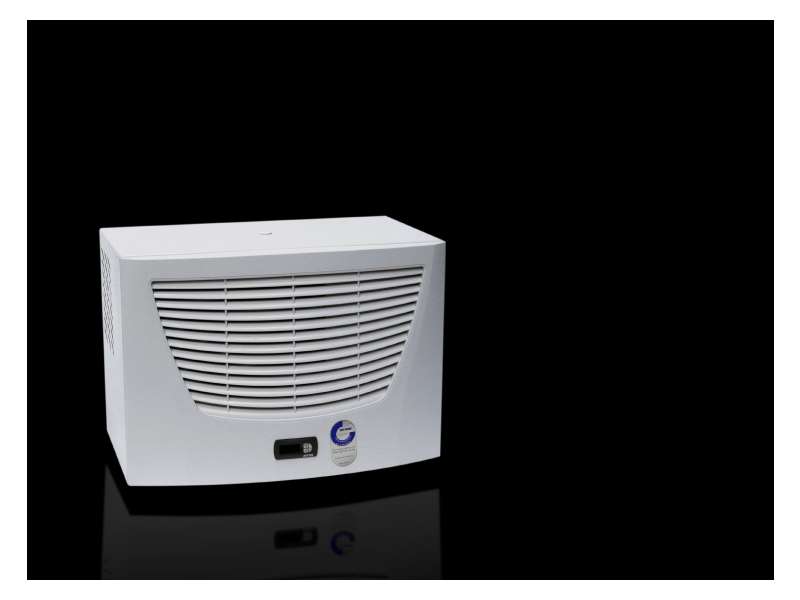

Rittal TOP-THERM ''Blue e'' krovna klima 550W, 230V , 1~, 50Hz, 3382500
Energy-efficient Blue e roof-mounted cooling units in output categories from 500 W to 4,000 W with e-Comfort controller integrated as standard and electrical condensate...
VAT-exclusive price: 222.488,01 |
VAT-inclusive price: 266.985,62 |
Energy-efficient Blue e roof-mounted cooling units in output categories from 500 W to 4,000 W with e-Comfort controller integrated as standard and electrical condensate evaporation.
Product Specification - SK 3382.500
| Article No. | SK 3382.500 |
|---|---|
| Design | Roof-mounted |
| Product description | Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard. |
| Benefits | May be linked to IoT interface via Blue e IoT adaptor (from 500 W with e-Comfort controller) |
| Material | Sheet steel |
| Colour | RAL 7035 |
| Supply includes | Condenser with RiNano coating, electric condensate evaporation, fully wired, drilling template, assembly parts |
| Total cooling output | L35 L35/50 Hz: 0.6 kW | L35 L35/60 Hz: 0.62 kW | L35 L50/50 Hz: 0.47 kW | L35 L50/60 Hz: 0.48 kW |
| Operating voltage | 230 V, 1~, 50/60 Hz |
| Note | Low noise – suitable for office applications |
| Rated current max. | 50 Hz: 2.3 A | 60 Hz: 2.6 A |
| Start-up current | 50 Hz: 9.1 A | 60 Hz: 8.8 A |
| Air throughput | External: 800 m³/h | Internal: 170 m³/h |
| Energy efficiency ratio (EER) | 50 Hz: 1.62 | 60 Hz: 1.91 |
| Dimensions (W x H x D) | 597 x 417 x 380 mm |
| Protection category | External: IP 34 | Internal: IP 54 |
| Refrigerant | R-513A | 0.3 kg | GWP 631 | CO₂e 0.19 t |
| Electrical connection | Plug-in terminal strip |
| Duty cycle | 100 % |
| Temperature control | e-Comfort controller (+35 °C) |
| Operating temperature | 10 °C...55 °C |
| Storage temperature | -40 °C...70 °C |
| Setting range | 20 °C...55 °C |
| Power consumption | L35 L35/50 Hz: 0.37 kW | L35 L35/60 Hz: 0.34 kW | L35 L50/50 Hz: 0.41 kW | L35 L50/60 Hz: 0.39 kW |
| Max. pressure | 28 bar |
| Pre-fuse | Miniature circuit-breaker/fuse: 10 A |
| Packs of | 1 pc(s) |
| Net weight | 36.1 kg |
| Gross weight | 38 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177323162 |
| ETIM | 9: EC000855 | 8: EC000855 |
| ECLASS 8.0 | 27180704 |
