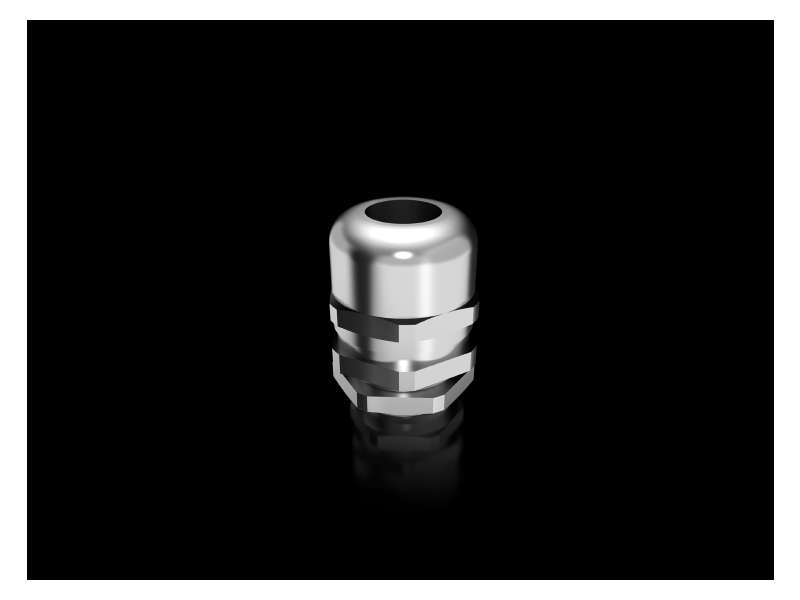

Rittal Uvodnica M16x1.5mm, od 4,5 - 10mm | 2411811
The Rittal brass cable gland M16x1.5mm is designed for cable diameters from 4.5 to 10mm, ensuring maximum durability and reliable sealing. With IP68 protection,...
VAT-exclusive price: 3.617,20 |
VAT-inclusive price: 4.340,65 |
The Rittal brass cable gland M16x1.5mm is designed for cable diameters from 4.5 to 10mm, ensuring maximum durability and reliable sealing. With IP68 protection, it provides excellent resistance against dust and water. The integrated clamping membrane allows secure tightening and cable-friendly strain relief. Supplied in packs of 15. Reference: 2411811.
SZ 2411811 Cable Gland
| Article number | SZ 2411.811 |
| Benefits | Because the gland and lock nut are sold together in a single pack, this saves additional ordering and storage. Clamping membranes for even tightening and strain relief to protect the cables. |
| Material | Brass |
| Seal | CR/NBR |
| Surface finish | Nickel-plated |
| IP protection category (IEC 60529) | IP68 (5 bar, 30 min) |
| Dimensions - Height | 28 mm |
| Thread | M16 x 1.5 |
| Thread length | 7 mm |
| Min. cable diameter | 5 mm |
| Max. cable diameter | 10 mm |
| Operating temperature range | -40 °C...100 °C |
| Torque | 9 Nm |
| Width across flats | 20 mm |
| Type rating (UL 50E) | Type 4X |
| Packs of | 15 pc(s) |
| Net weight | 0.3 kg |
| Gross weight | 0.451 kg |
| Customs tariff number | 74198090 |
| EAN | 4028177810082 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | SZ Cable gland, brass, size: M16x1.5, for cables Ø 5-10 mm |
