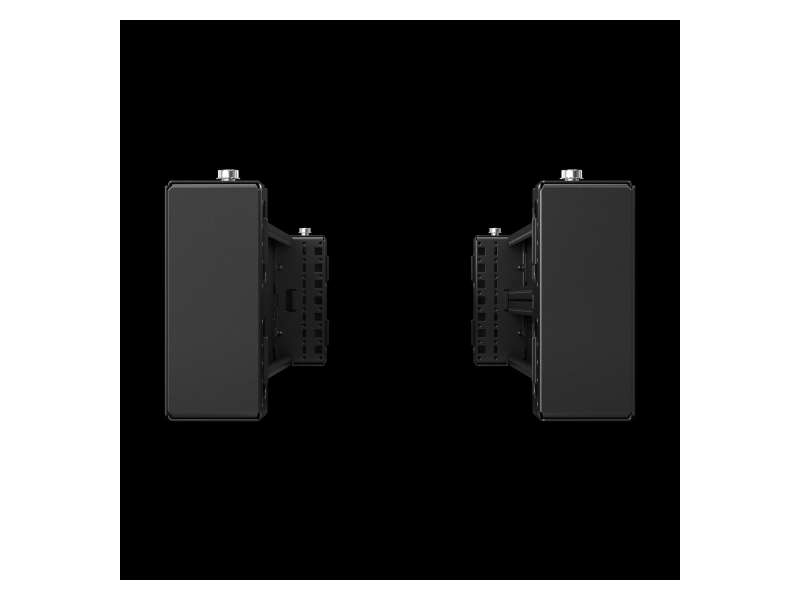

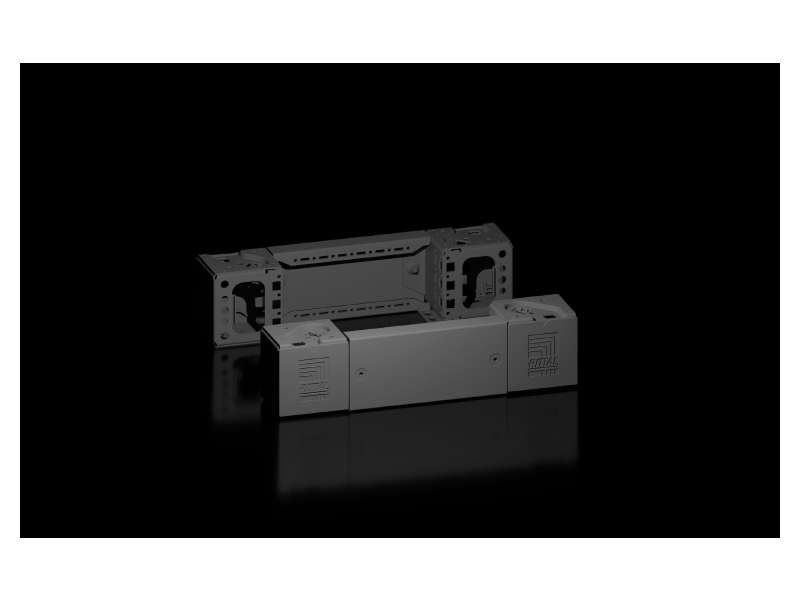

Rittal VX Base/Plinth Corner Piece with Trim Panel | 8660001
VX base/plinth corner piece with trim panel (8660001) allows flexible cable entry. Provides stable corner installation and facilitates cable routing....
VAT-exclusive price: 6.069,12 |
VAT-inclusive price: 7.282,95 |
VX base/plinth corner piece with trim panel (8660001) allows flexible cable entry. Provides stable corner installation and facilitates cable routing.
| Article number | VX 8660001 |
|---|---|
| Product description | VX base/plinth corner piece with trim panel, front and rear, H: 100 mm, for W: 400 mm, sheet steel |
| Benefits |
Reliable – Excellent stability of the base/plinth Flexible – Countless interior installation options with VX accessories Simple – Flush termination between the baying points |
| Material |
Base/plinth corner piece: Sheet steel Base/plinth trim panel front/rear: Sheet steel Corner and baying cover: Plastic |
| Colour | RAL 9005 |
| Supply includes |

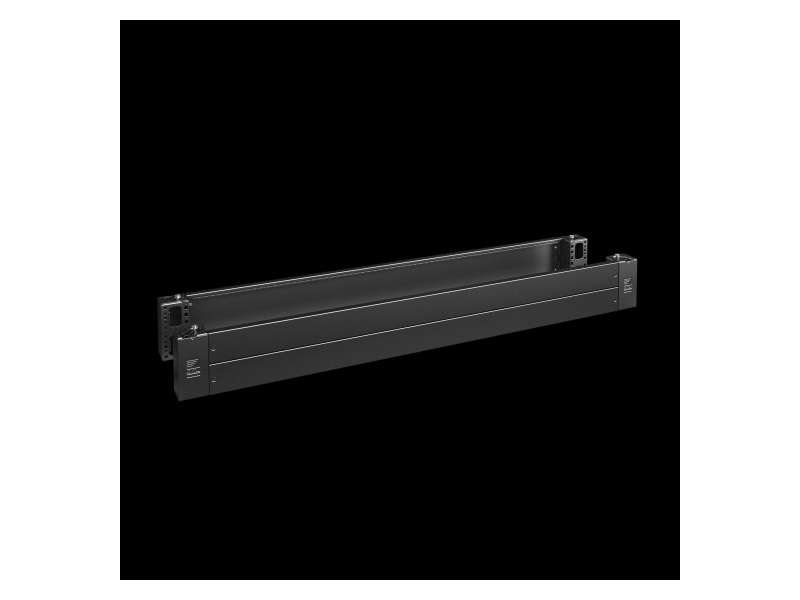

4 corner covers Assembly parts 4 base/plinth corner pieces, 100 mm high 2 base/plinth trim panels, front/rear, 100 mm high |
| Dimensions | Height: 100 mm |
| To fit |
Enclosure types: VX, VX IT, VX SE, TX CableNet, TS, TS IT, TP, PC, IW, CX Width: 400 mm |
| Type rating to UL 50E | Type 1, Type 12 |
| Weight/pack | 3,67 kg |
| Packs of | 2 pc(s) |
| Net weight | 3,6 kg |
| Gross weight | 3,665 kg |
| PCF per pack (cradle-to-gate) | 14 kg CO2 eq (Cat B) |
| Customs tariff number | 94039910 |
| EAN | 4028177978034 |
| ETIM 9 | EC000721 |
| ECLASS 8.0 | 27182003 |
