Rittal VX IT Set za izjednačavanje potencijala - osnovni 5302027
Central earthing point with 0.3 m long earthing lead for simple connection on the enclosure frame to the earthing/potential equalisation network (rack bonding conductor...
VAT-exclusive price: 4.502,26 |
VAT-inclusive price: 5.402,71 |
Central earthing point with 0.3 m long earthing lead for simple connection on the enclosure frame to the earthing/potential equalisation network (rack bonding conductor (RBC) connection point).
| Article number | DK 5302027 |
| Product description | Central earthing point on the enclosure frame for simple connection of the enclosure to the earthing/potential equalisation network (rack bonding conductor (RBC) connection point). |
| Applications | To create seamless central potential equalisation between all installed components and/or to ensure functional earthing to EN 50 310 |
| Function principle | Contact between all enclosure panels and the enclosure frame as central earthing point plus contact with all installed components to the same potential, via a conductive attachment or separate earth strap |
| Supply includes |

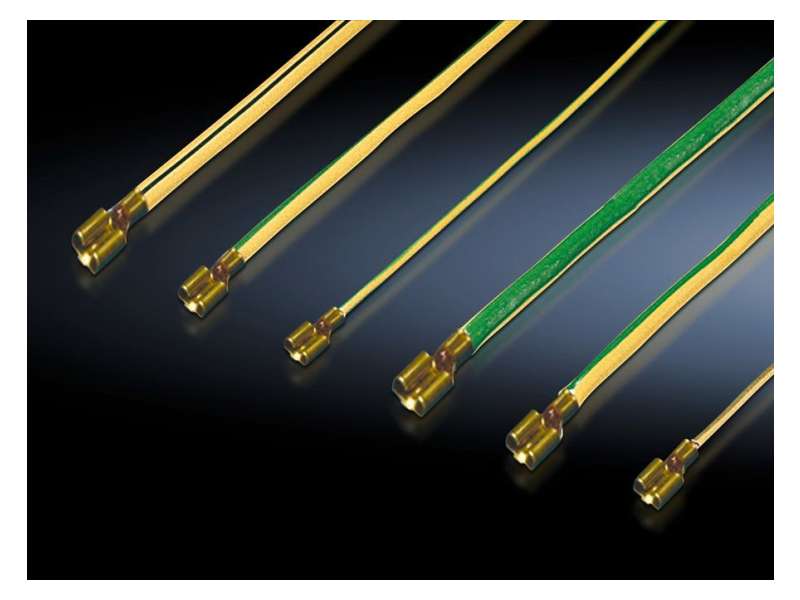

7 earth straps (4 mm²), UL style 1015 AWG 12, for doors and optional side panels Central earthing point Assembly parts |
| Note | If a risk assessment of the ultimate application has been carried out by a qualified electrician and no extended risk potential has been identified, no protective earthing measures are required |
| Packs of | 1 pc(s) |
| Net weight | 0.26 kg |
| Gross weight | 0.265 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177955332 |
| ETIM 9 | EC001503 |
| ECLASS 8.0 | 27149219 |
| Product description | Potential equalisation kit for VX IT, to establish seamless central potential equalisation between all installed components and/or to ensure functional earthing in accordance with DIN EN 50 310 |
