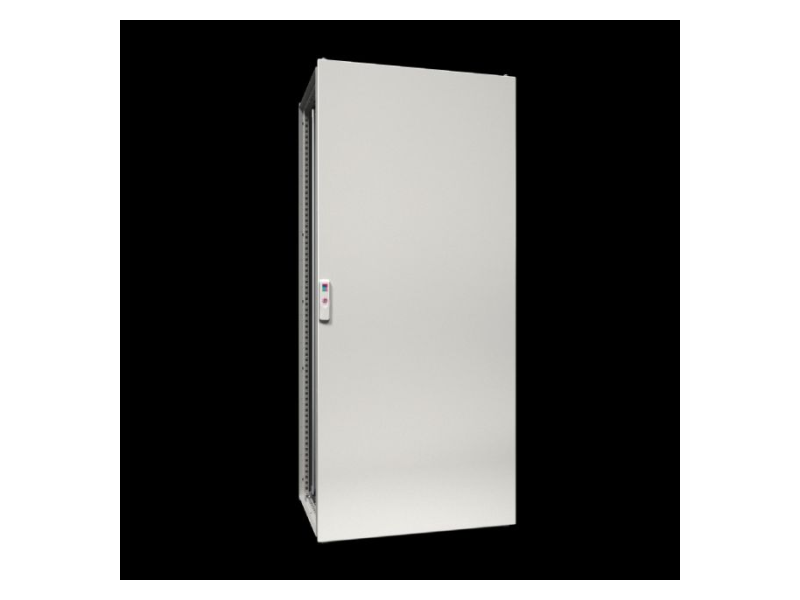

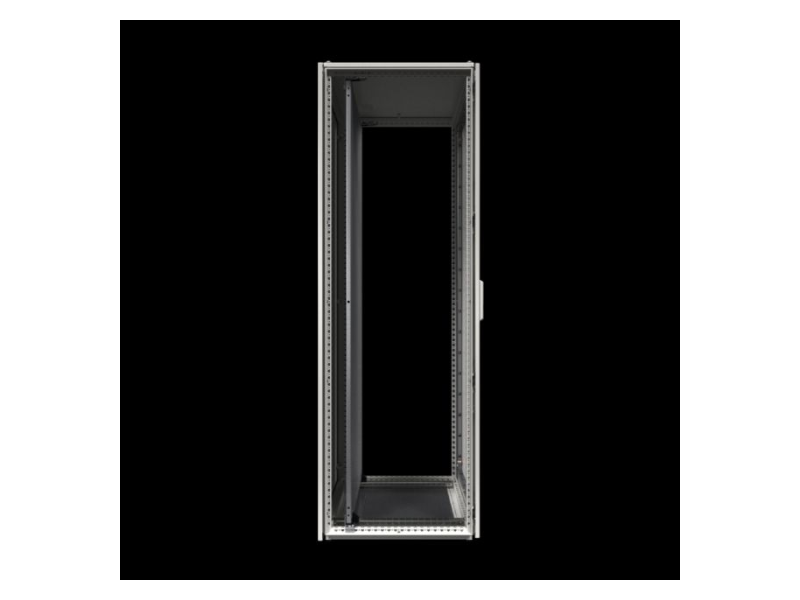

Rittal VX orman 400x1800x600mm (ŠxVxD), Čelik, IP55, RAL7035 | 8486000
The standard in enclosure manufacturing: Enclosure frame with one front door, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient...
VAT-exclusive price: 99.295,29 |
VAT-inclusive price: 119.154,35 |
The standard in enclosure manufacturing: Enclosure frame with one front door, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.
| Article number | VX 8486000 |
|---|---|
| Material |
Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm Gland plates: Sheet steel, 1.5 mm Mounting plate: Sheet steel, 3.0 mm |
| Surface finish |
Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes |
Enclosure frame Door(s) Door hinged on the right, may be swapped to the left Roof plate Rear panel Gland plates Mounting plate 2 punched rails 18 x 39 mm Lock: 3 mm double-bit |
| Dimensions |
Width: 400 mm Height: 1,800 mm Depth: 600 mm Mounting plate (W x H): 299 mm x 1,696 mm |
| Protection category (IEC 60 529) | IP 55 |
| Protection category NEMA | NEMA 1 / NEMA 12 |
| Type rating (UL 50E) | Type 1 / Type 12 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 67.57 kg |
| Gross weight | 69.6 kg |
| PCF per pack (cradle-to-gate) | 171.5 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177919310 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 400x1800x600 mm, sheet steel, with mounting plate, single door at the front |
