Rittal VX ORMAN 800x2000x500 | 8805000
The VX Enclosure 800x2000x500 (8805000) represents the standard in enclosure manufacturing. Built from durable sheet steel, it features a stable frame design with...
VAT-exclusive price: 112.346,54 |
VAT-inclusive price: 134.815,85 |

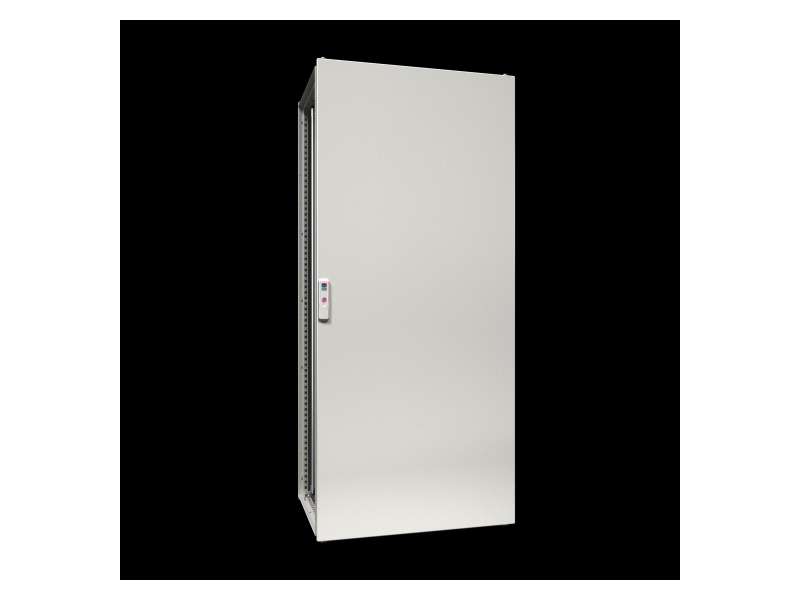

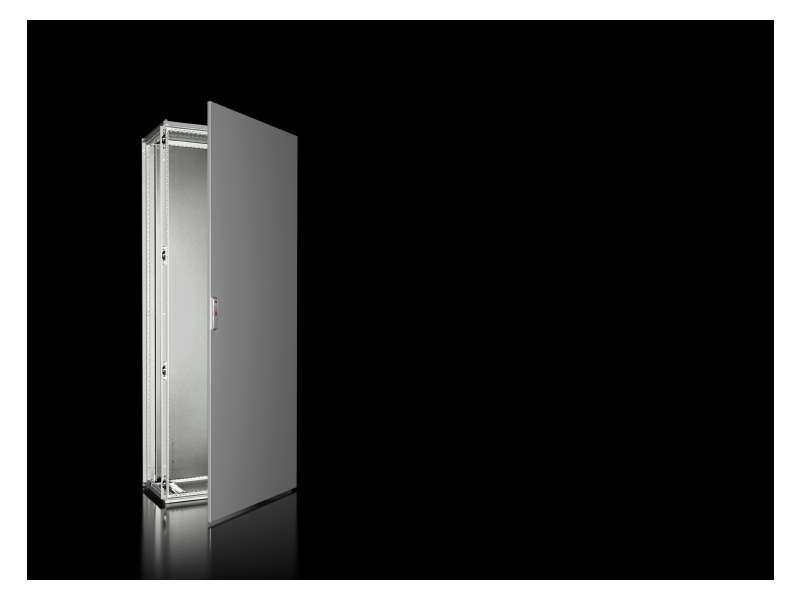

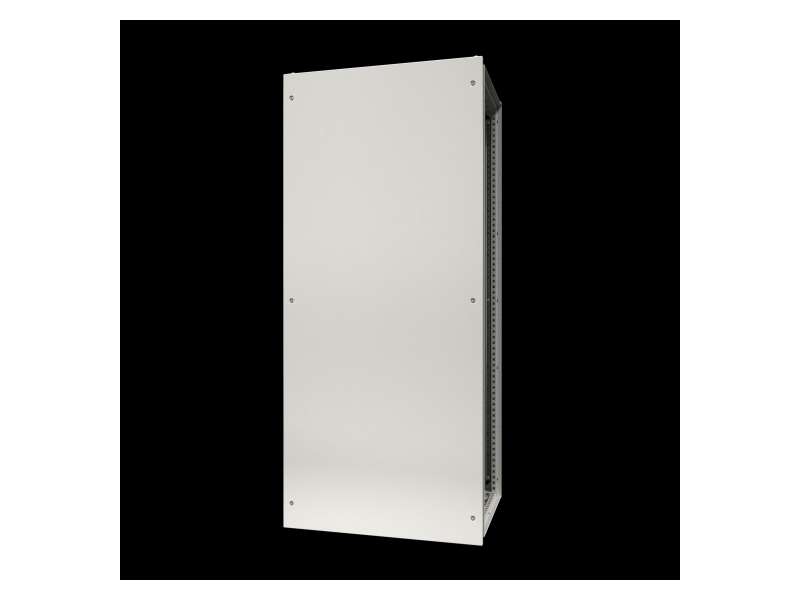

The VX Enclosure 800x2000x500 (8805000) represents the standard in enclosure manufacturing. Built from durable sheet steel, it features a stable frame design with a front door, rear panel, mounting plate, roof plate, and divided gland plates. This cabinet ensures maximum efficiency and flexibility for enclosure interior installation, making it the perfect solution for modern industrial environments.
| Material |
Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm Gland plates: Sheet steel, 1.5 mm Mounting plate: Sheet steel, 3.0 mm |
|---|---|
| Surface finish |
Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frame, Door(s), Roof plate, Rear panel, Gland plates, Mounting plate, 2 punched rails 18 x 39 mm, Lock: 3 mm double-bit |
| Door information | Door hinged on the right, may be swapped to the left |
| Dimensions (W x H x D) | 800 x 2000 x 500 mm |
| Mounting plate dimensions (W x H) | 699 x 1896 mm |
| Protection category (IEC 60529) | IP 55 |
| Protection category (NEMA) | NEMA 1, NEMA 12 |
| Type rating (UL 50E) | Type 1, Type 12 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 118.25 kg |
| Gross weight | 122.3 kg |
| PCF per pack (cradle-to-gate) | 300.6 kg CO₂ eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| EAN | 4028177813830 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 800x2000x500 mm, sheet steel, with mounting plate, single door at the front |
