Schneider Electric 130mm rotirajuća svetiljka narandžasta 120VAC IP67;XVR13G05L
Harmony XVR, Rotating beacon, Ø130, orange, without buzzer, 120 V AC...
VAT-exclusive price: 37.606,00 |
VAT-inclusive price: 45.127,20 |

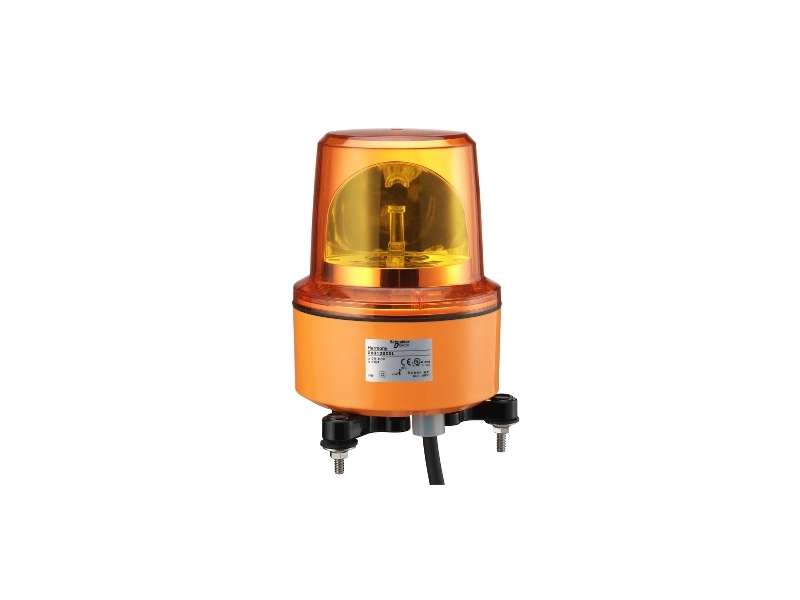

Harmony XVR, Rotating beacon, Ø130, orange, without buzzer, 120 V AC
| range of product | Harmony XVR |
|---|---|
| product or component type | Prewired rotating mirror beacon |
| sound signalling | Without |
| device short name | XVR |
| mounting diameter | 130 mm |
| IP degree of protection |
IP66 conforming to IEC 60529 IP67 conforming to IEC 60529 |
| [Us] rated supply voltage | 120 V AC |
| light source | High luminosity LED, orange |
| material |
ABS (acrylonitrile butadiene-styrene): body part PC: globe |
|---|---|
| CAD overall width | 130 mm |
| CAD overall depth | 130 mm |
| net weight | 0.99 kg |
| marking | CE |
| product mounting | By 3 M6 screws |
| [Uimp] rated impulse withstand voltage | 4 kV |
| current consumption | 42 mA |
| flashing frequency | 2.7 Hz |
| clamping connection capacity | 1.25 mm² |
| AWG gauge | AWG 18 |
| cable length | 400 mm |
| standards |
EN/IEC 60947-1 EN/IEC 60947-5-1 |
|---|---|
| protective treatment | TC |
| ambient air temperature for storage | -35…70 °C |
| ambient air temperature for operation | -30…50 °C |
| electrical shock protection class | Class II conforming to IEC 61140 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.344 kg |
| Package 1 Height | 27.0 cm |
| Package 1 width | 18.7 cm |
| Package 1 Length | 18.8 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 1.344 kg |
| Package 2 Height | 27.0 cm |
| Package 2 width | 18.7 cm |
| Package 2 Length | 18.0 cm |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 9.316 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 40.0 cm |
| Package 3 Length | 60.0 cm |
| Warranty | 18 months |
|---|
