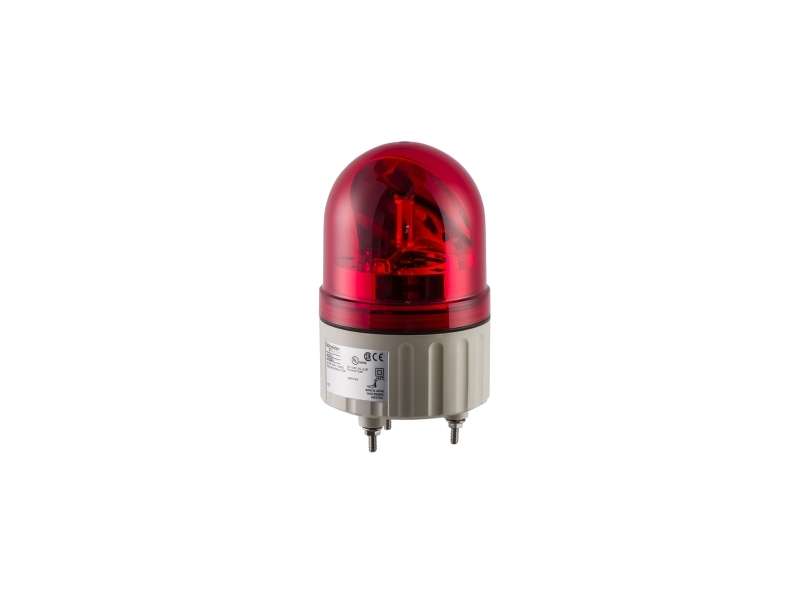

Schneider Electric 84mm rotirajuća svetiljka crvena 24VAC-DC;XVR08B04

Harmony XVR, Rotating beacon, Ø84, red, without buzzer, 24 V AC/DC...

Brand: Schneider Electric
Product Code: XVR08B04
Availability: Check availability

VAT-exclusive price: 19.504,00

VAT-inclusive price: 23.404,80

Qnt:

Description
Specification

Harmony XVR, Rotating beacon, Ø84, red, without buzzer, 24 V AC/DC

Main
range of product	Harmony XVR
product or component type	Prewired rotating mirror beacon
sound signalling	Without
device short name	XVR
mounting diameter	84 mm
IP degree of protection	IP65 (with accessory) conforming to IEC 60529 IP23 conforming to IEC 60529
[Us] rated supply voltage	24 V AC/DC
light source	High luminosity LED, red

Complementary
material	ABS (acrylonitrile butadiene-styrene): body part PC: globe
CAD overall width	84 mm
CAD overall depth	84 mm
net weight	0.3 kg
marking	CE
product mounting	By 3 M4 screws
supply voltage limits	19…30 V DC 21.6…26.4 V AC
[Uimp] rated impulse withstand voltage	0.8 kV
current consumption	125 mA
flashing frequency	2.3 Hz
clamping connection capacity	0.83 mm²
AWG gauge	AWG 18
cable length	500 mm

Environment
standards	EN 61000-6-4 EN 61000-6-2
product certifications	UL
protective treatment	TC
ambient air temperature for storage	-35…70 °C
ambient air temperature for operation	-10…50 °C
electrical shock protection class	Class II conforming to IEC 61140

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	395.0 g
Package 1 Height	18.5 cm
Package 1 width	9.8 cm
Package 1 Length	9.8 cm
Unit Type of Package 2	S03
Number of Units in Package 2	6
Package 2 Weight	3.25 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
