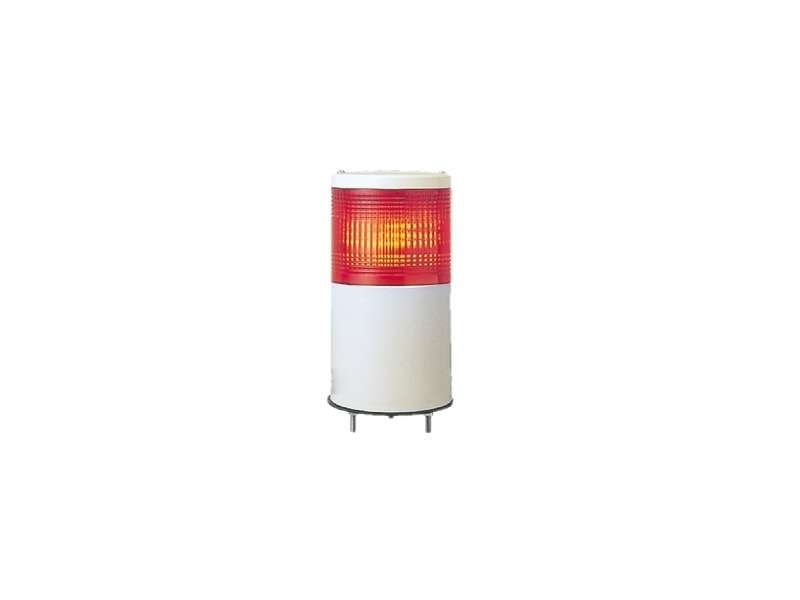

Schneider Electric 40mm svetlosna kolona crvena - montaža na bazu;XVC4B1K
Harmony XVC, Monolithic precabled tower light, plastic, red, Ø40, base mounting, steady, IP54, 24 V AC/DC...
VAT-exclusive price: 10.506,00 |
VAT-inclusive price: 12.607,20 |
Harmony XVC, Monolithic precabled tower light, plastic, red, Ø40, base mounting, steady, IP54, 24 V AC/DC
| range of product | Harmony XVC4 |
|---|---|
| product or component type | Complete pre-wired monolithic tower light |
| beacon or indicator bank unit type | 1 illuminated unit |
| sound signalling | Without |
| mounting diameter | 40 mm |
| component name | XVC |
| device short name | XVC |
| light source | LED steady red |
| supply circuit type | AC/DC |
| material |
Polycarbonate: illuminated unit ABS (acrylonitrile butadiene-styrene): base unit PBT + ABS (UL94HB): top cover |
|---|---|
| mounting location | On base |
| product mounting | On base |
| [Us] rated supply voltage | 24 V |
| [Us] rated supply voltage | 24 V |
| cable cross section | 0.33 mm² |
| AWG gauge | AWG 22 |
| cable length | 500 mm |
| marking | CE |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| current consumption | 25 mA |
| flashing frequency | 1 Hz |
| net weight | 0.1 kg |
| height | 100.5 mm |
| standards |
EN/IEC 61000-6-2 EN/IEC 61000-6-3 |
|---|---|
| product certifications | UL |
| protective treatment | TC |
| ambient air temperature for storage | -35…70 °C |
| ambient air temperature for operation | -10…50 °C |
| electrical shock protection class | Class II conforming to EN/IEC 61140 |
| overvoltage category | Class II conforming to EN/IEC 61140 |
| IP degree of protection | IP54 flat surface installation conforming to EN/IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 250.0 g |
| Package 1 Height | 6.2 cm |
| Package 1 width | 7.2 cm |
| Package 1 Length | 46.6 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 4.252 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 60 |
| Package 3 Weight | 24.62 kg |
| Package 3 Height | 60.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Warranty | 18 months |
|---|
