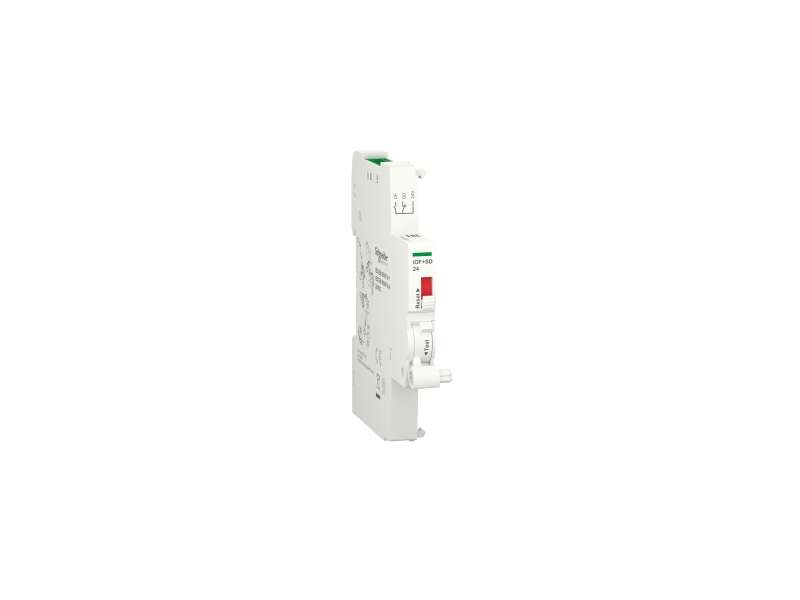

Schneider Electric Acti 9 - pomoćni kontakt iOF+SD nizak nivo - za iC60, iID, ARA, RCA, iSW-NA;A9A26897
Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)...
VAT-exclusive price: 2.870,00 |
VAT-inclusive price: 3.444,00 |
Auxiliary contact, Acti9 A9A, iOF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)
| range of product | Acti9 |
|---|---|
| product or component type | OC and fault contact with PLC interface |
| device short name | IOF+SD 24 |
| signal contacts composition | 1 NO + 1 NC |
| [In] rated current | 2…100 mA: 24 V DC +/- 20 % |
| 9 mm pitches | 1 |
| [Ui] rated insulation voltage | 500 V conforming to IEC 60664-1 |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| local signalling | Mechanical indicator |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | Bottom: YES |
| height | 88 mm |
| width | 9 mm |
| depth | 73.5 mm |
| net weight | 25 g |
| colour | White |
| electrical durability | 20000 cycles conforming to IEC 60947-5-4 |
| connections - terminals |
Spring-loaded terminal Ti24 (top) 2 cable(s) 0.5…1.5 mm² - flexible Spring-loaded terminal Ti24 (top) 2 cable(s) 0.5…1.5 mm² - rigid |
| wire stripping length | 10 mm |
| standards |
IEC 60947-5-4 IEC 60947-5-1 |
|---|---|
| quality labels | CE |
| pollution degree | 2 conforming to IEC 60664-1 |
| overvoltage category | III |
| tropicalisation | 2 conforming to IEC 60947-5-1 |
| relative humidity | 93 % at 40 °C |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 39.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.3 cm |
| Package 2 Width | 9.8 cm |
| Package 2 Length | 27.0 cm |
| Package 2 Weight | 550.0 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 5.987 kg |
| Warranty | 18 months |
|---|
