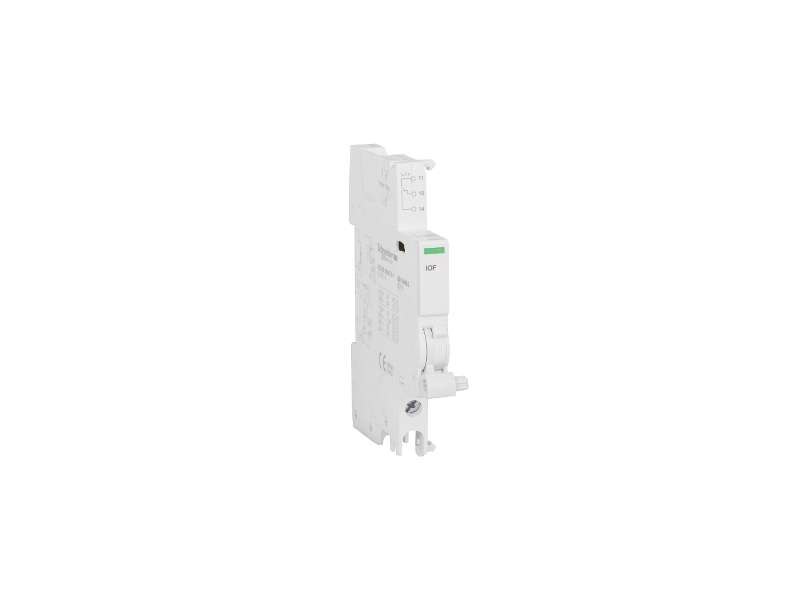

Schneider Electric Acti 9 - pomoćni kontakt za signalizaciju greške iSD - 1 C/O - AC/DC;A9A26927

Auxiliary contact, Acti9, iSD, 1OC, AC/DC...

Brand: Schneider Electric
Product Code: A9A26927
Availability: Check availability

VAT-exclusive price: 2.020,00

VAT-inclusive price: 2.424,00

Qnt:

Description
Specification

Auxiliary contact, Acti9, iSD, 1OC, AC/DC

Main
range of product	Acti9
product or component type	Fault contact
device short name	ISD
signal contacts composition	1 C/O
[In] rated current	1 A: 130 V DC 1.5 A: 60 V DC 2 A: 48 V DC 6 A: 24 V DC 3 A: 415 V AC - 50/60 Hz 6 A: 240 V AC - 50/60 Hz
9 mm pitches	1

Complementary
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
local signalling	Mechanical indicator
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	Top: YES
height	86 mm
width	9 mm
depth	73 mm
net weight	33 g
colour	White
connections - terminals	Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexible Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigid
wire stripping length	10 mm
tightening torque	1 N.m

Environment
standards	EN/IEC 60947-5-1
IP degree of protection	IP20 conforming to EN/IEC 60947-5-1
pollution degree	3 conforming to EN/IEC 60947-5-1
tropicalisation	2 conforming to EN/IEC 60947-5-1
ambient air temperature for operation	-35…70 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.8 cm
Package 1 Width	2 cm
Package 1 Length	9.2 cm
Package 1 Weight	44 g
Unit Type of Package 2	BB1
Number of Units in Package 2	12
Package 2 Height	8.5 cm
Package 2 Width	10 cm
Package 2 Length	27.5 cm
Package 2 Weight	607 g
Unit Type of Package 3	P06
Number of Units in Package 3	960
Package 3 Height	77 cm
Package 3 Width	80 cm
Package 3 Length	60 cm
Package 3 Weight	52.66 kg

Contractual warranty
Warranty	18 months
