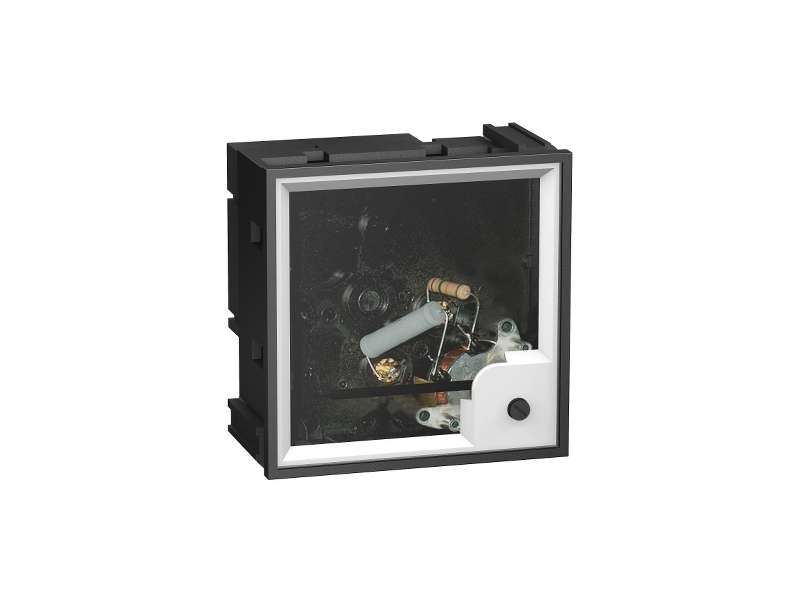

Schneider Electric Ampermetar AMP PowerLogic - 96 x 96 - feromagnetni - za motorni dovod;16073

ammeter AMP PowerLogic - 96 x 96 - ferromagnetic - for motor feeder...

Brand: Schneider Electric
Product Code: 16073
Availability: Check availability

VAT-exclusive price: 5.395,00

VAT-inclusive price: 6.474,00

Qnt:

Description
Specification

ammeter AMP PowerLogic - 96 x 96 - ferromagnetic - for motor feeder

Main
range	PowerLogic
device short name	AMP
product or component type	Ammeter
device application	Motor
range compatibility	Prisma P door Prisma G door
technology type	Ferromagnetic
scale type	80 mm over 90°
mounting support	Front face

Complementary
type of measurement	Current
accuracy class	Class 1.5
power consumption in VA	1.1 VA
power consumption in VA	1.1 VA
overload withstand	1.2 In, permanently 10 In, 5 s
device mounting	Flush
operating position	30°/vertical
width	96 mm
height	96 mm
depth	75 mm
temperature drift	+/- 0.003 %/°C

Environment
standards	IEC 61010-1 IEC 61000-4 IEC 60051-1
IP degree of protection	IP52
ambient air temperature for operation	-25…50 °C
reference temperature	23 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	268.0 g
Package 1 Height	12 cm
Package 1 width	12 cm
Package 1 Length	13 cm
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Weight	3.703 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
