Schneider Electric Baza Harmony XVB;XVBC07

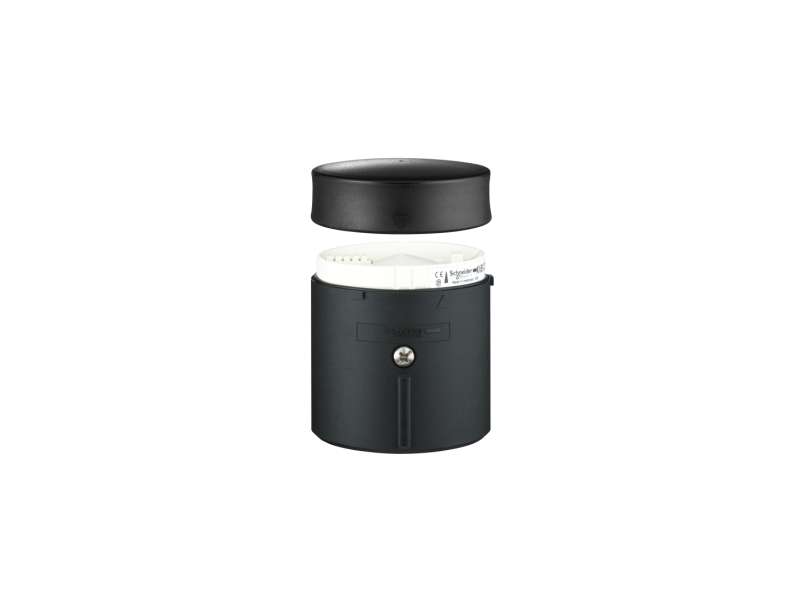

Harmony XVB, Base unit for modular tower lights, plastic, black, Ø70, bottom or side cable entry...
VAT-exclusive price: 5.714,00 |
VAT-inclusive price: 6.856,80 |
Harmony XVB, Base unit for modular tower lights, plastic, black, Ø70, bottom or side cable entry
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Base unit |
| component name | XVBC |
| material | Glass reinforced polyamide: base unit |
| fixing mode | Direct or tube fixing |
|---|---|
| mounting diameter | 70 mm |
| product destination | Banks without flash discharge tube unit |
| electrical connection | 1 connector for standard input |
| cable entry | Bottom or side entry |
| assembly style | Customer assembly, up to 5 units |
| terminals description ISO n°1 |
(COM-2)PW (COM-3)PW (COM-1)PW (GND)GROUND (COM-4)PW (COM-5)PW |
| net weight | 0.16 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 170.0 g |
| Package 1 Height | 10.0 cm |
| Package 1 width | 12.0 cm |
| Package 1 Length | 10.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 36.5 kg |
| Package 2 Height | 45.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 7.0 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Base unit |
| component name | XVBC |
| material | Glass reinforced polyamide: base unit |
| fixing mode | Direct or tube fixing |
|---|---|
| mounting diameter | 70 mm |
| product destination | Banks without flash discharge tube unit |
| electrical connection | 1 connector for standard input |
| cable entry | Bottom or side entry |
| assembly style | Customer assembly, up to 5 units |
| terminals description ISO n°1 |
(COM-2)PW (COM-3)PW (COM-1)PW (GND)GROUND (COM-4)PW (COM-5)PW |
| net weight | 0.16 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 170.0 g |
| Package 1 Height | 10.0 cm |
| Package 1 width | 12.0 cm |
| Package 1 Length | 10.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 36.5 kg |
| Package 2 Height | 45.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 7.0 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Base unit |
| component name | XVBC |
| material | Glass reinforced polyamide: base unit |
| fixing mode | Direct or tube fixing |
|---|---|
| mounting diameter | 70 mm |
| product destination | Banks without flash discharge tube unit |
| electrical connection | 1 connector for standard input |
| cable entry | Bottom or side entry |
| assembly style | Customer assembly, up to 5 units |
| terminals description ISO n°1 |
(COM-2)PW (COM-3)PW (COM-1)PW (GND)GROUND (COM-4)PW (COM-5)PW |
| net weight | 0.16 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | Similar products:
