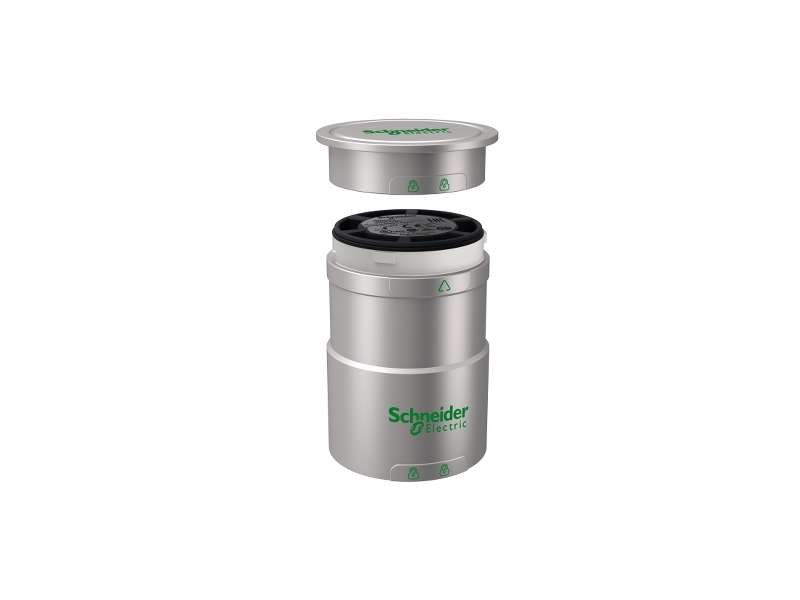

Schneider Electric Bazna jedinica 24V AC/DC - srebrna;XVUC21BQ
Harmony XVU, Base unit with top cover for modular tower lights, silver, Ø60, 24 V AC/DC...
VAT-exclusive price: 4.794,00 |
VAT-inclusive price: 5.752,80 |
Harmony XVU, Base unit with top cover for modular tower lights, silver, Ø60, 24 V AC/DC
| range of product | Harmony XVU |
|---|---|
| product or component type | Modular tower light |
| beacon or indicator bank unit type | Base unit |
| mounting diameter | 60 mm |
| component name | XVU |
| housing colour | Silver |
| kit composition |
Base unit Cover |
|---|---|
| fixing mode | Direct or tube fixing |
| material |
PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94 |
| assembly style | Customer assembly, up to 5 units |
| [Us] rated supply voltage | 24 V AC/DC - 15...10 % |
| current consumption | <= 400 mA |
| length | 77 mm |
| net weight | 0.11 kg |
| product certifications |
CSA UL CE |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…50 °C |
| vibration resistance | 2 gn |
| IP degree of protection | IP65 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 286.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 9.1 cm |
| Package 1 Length | 26.8 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 24 |
| Package 2 Weight | 8.205 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
