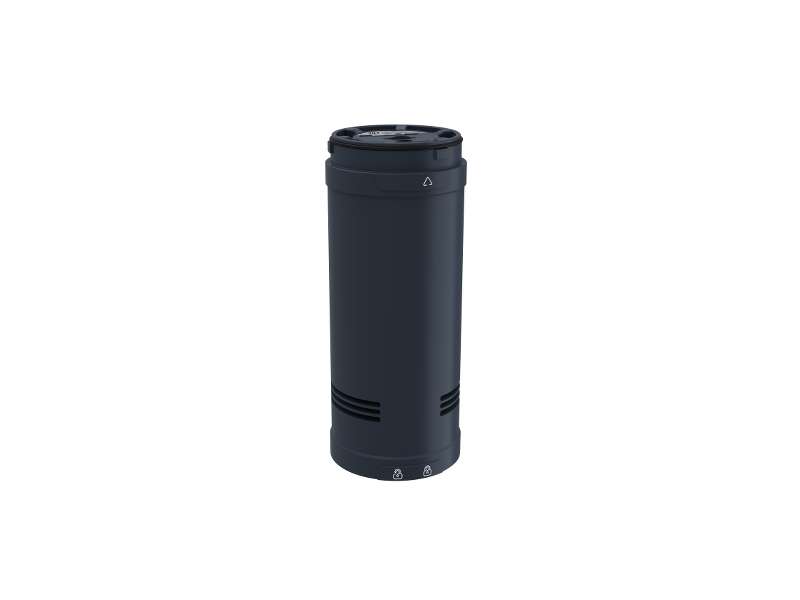

Schneider Electric Ø 60 mm - XVU zvučna jedinica - IP54 - 24 V AC/DC, crna;XVUC9V

Harmony XVU, Audible unit, black, Ø60, sound, 24 V AC/DC...

Brand: Schneider Electric
Product Code: XVUC9V
Availability: Check availability

Price on request

Description
Specification

Harmony XVU, Audible unit, black, Ø60, sound, 24 V AC/DC

Main
range of product	Harmony XVU
product or component type	Modular tower light
beacon or indicator bank unit type	Sound unit
mounting diameter	60 mm
component name	XVU
housing colour	Black

Complementary
signalling type	Adjustable vocal sound
material	PBT (polybutylene terephthalate) V-0 conforming to UL 94 ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
localisation on device	AC/DC adapter
assembly style	Customer assembly
[Us] rated supply voltage	24 V AC/DC
maximum power dissipation in W	5.55 W
acoustic level	86 dB at 1 m
sound frequency	20 Hz...20 KHz
current consumption	<= 400 mA at 24 V AC/DC <= 135 mA at 100...240 V AC
length	155 mm
net weight	0.219 kg

Environment
product certifications	UL CSA CE
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-20…50 °C
IP degree of protection	IP54

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	371.0 g
Package 1 Height	9.0 cm
Package 1 width	9.5 cm
Package 1 Length	26.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	24
Package 2 Weight	10.084 kg
Package 2 Height	30.0 cm
Package 2 width	40.0 cm
Package 2 Length	60.0 cm
