Schneider Electric C60PV -DC - 2P - 8A - 800 V - B kriva;A9N61657

C60PV-DC - 2P - 8A - 800 V - B curve...

Brand: Schneider Electric
Product Code: A9N61657
Availability: Check availability

Price on request

Description
Specification

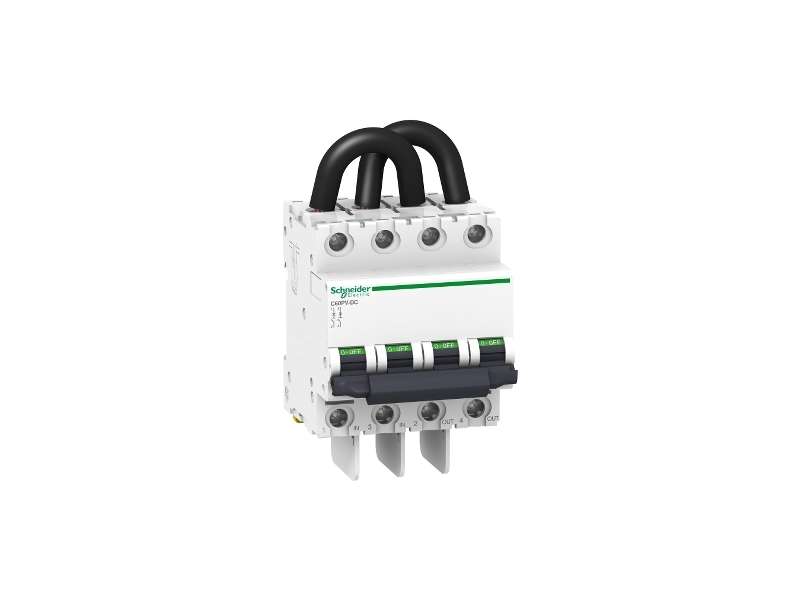

C60PV-DC - 2P - 8A - 800 V - B curve

Main
range of product	C60
product or component type	Miniature circuit-breaker
device short name	C60PV-DC
poles description	2P
number of protected poles	2
network type	DC
curve code	B
utilisation category	Category A conforming to EN/IEC 60947-2
suitability for isolation	Yes conforming to EN/IEC 60947-2

Complementary
[In] rated current	8 A
Voltage Drop	1384 mV 173 mOhm 11.1 W 8 A
[Ue] rated operational voltage	800 V DC
magnetic tripping limit	5.5 x In
breaking capacity	3 kA Icu at 650 V DC 1.5 kA Icu at 800 V DC
[Ics] rated service breaking capacity	1.5 kA 100 % - 800 V DC 3 kA 100 % - 650 V DC
[Ui] rated insulation voltage	1000 V DC
[Uimp] rated impulse withstand voltage	6 kV
contact position indicator	Yes
control type	Toggle
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
9 mm pitches	8
height	132.7 mm
width	72 mm
depth	77.4 mm
net weight	0.545 kg
colour	White
mechanical durability	20000 cycles
electrical durability	1500 cycles L/R = 2 ms
locking options description	Padlocking in OFF position
connections - terminals	Tunnel terminal (downside) 1…25 mm² rigid Tunnel terminal (downside) 1…16 mm² flexible Pre-wired cable (upside)
wire stripping length	14 mm
tightening torque	2.5 N.m
compatibility code	C60PV-DC

Environment
standards	EN/IEC 60947-2
pollution degree	2
relative humidity	95 % at 55 °C
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	572.0 g
Package 1 Height	8.0 cm
Package 1 width	7.5 cm
Package 1 Length	13.6 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	240
Package 2 Weight	2493.92 kg
Package 2 Height	15.0 cm
Package 2 width	80.0 cm
Package 2 Length	60.0 cm
Unit Type of Package 3	S03
Number of Units in Package 3	30
Package 3 Weight	16.73 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm

Contractual warranty
Warranty	18 months
