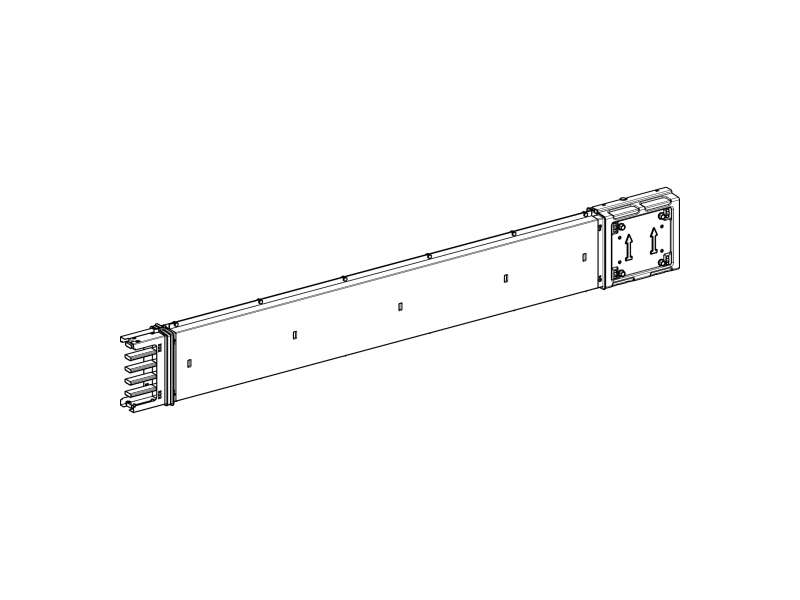

Schneider Electric CANALIS - RAVNI VODNI DEO - PO PORUDŽBINI - 400A

CANALIS - STRAIGHT LENGTH - MADE-TO-MESURE - 400A...

Brand: Schneider Electric
Product Code: KSA400ET43A
Availability: Check availability

VAT-exclusive price: 175.836,00

VAT-inclusive price: 211.003,20

Qnt:

CANALIS - STRAIGHT LENGTH - MADE-TO-MESURE - 400A

Main
range of product	Canalis
product name	KS
offer type	Missing link
product or component type	Busbar trunking
busbar description	Horizontal transport length
BAR MATERIAL	Aluminium
device application	Medium power distribution
[Ie] rated operational current	400 A at 35 °C
number of tap-off outlets	0

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ui] rated insulation voltage	690 V
[Icw] rated short-time withstand current	18.8 kA
[Ipk] rated peak withstand current	49.2 kA
electrical connection	Lubricated sliding contact
radiated magnetic field	1 µT
thermal stress limit	354 kA².s
maximum voltage drop	<0.022 V with power factor = 0.9 at 50 Hz with 1A for 100 m long <0.022 V with power factor = 0.8 at 50 Hz with 1A for 100 m long <0.021 V with power factor = 0.7 at 50 Hz with 1A for 100 m long <0.018 V with power factor = 1 at 50 Hz with 1A for 100 m long
mounting mode	By screws
mounting position	Horizontal
neutral position	Up
busbar trunking polarity	3L + N + PE
THDI	0…15 % 400 A 15…33 % 315 A 33…100 % 250 A
dimension type	Made to measure
width	146 mm
length	500…1900 mm
colour	White (RAL 9001)
net weight	10 kg

Environment
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
standards	IEC 61439-6 IEC 60439-2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	15.2 kg
Package 1 Height	6.3 cm
Package 1 width	16.7 cm
Package 1 Length	208.3 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
