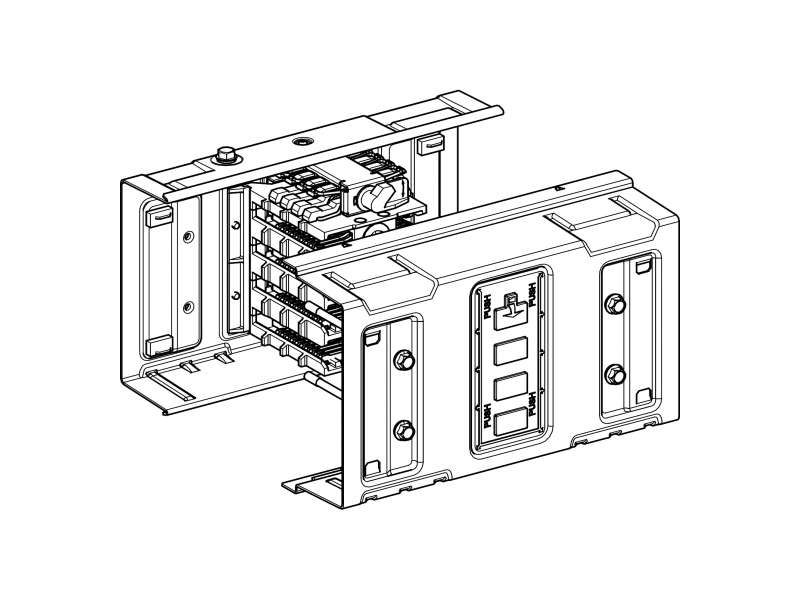

Schneider Electric Canalis - spojni element - 1000 A

JOINTING DEVICE 1000 A...

Brand: Schneider Electric
Product Code: KSA1000ZJ4
Availability: Check availability

VAT-exclusive price: 107.565,00

VAT-inclusive price: 129.078,00

Qnt:

JOINTING DEVICE 1000 A

Main
range of product	Canalis
product name	KS
product or component type	Electrical and mechanical jointing
product compatibility	KS
[Ie] rated operational current	1000 A 800 A
offer type	Spare part
colour	White (RAL 9001)

Complementary
device application	Medium power distribution
[Ue] rated operational voltage	230...690 V
control type	Without
number of circuits	1
busbar trunking polarity	3L + N + PE
width	276 mm
depth	117 mm
height	167 mm
net weight	4.5 kg

Environment
IK degree of protection	IK08 conforming to IEC 62262
IP degree of protection	IP55 conforming to IEC 60529
standards	IEC 61439-6 IEC 60439-2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	4.696 kg
Package 1 Height	15 cm
Package 1 width	19 cm
Package 1 Length	28.5 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance	Halogen free product
