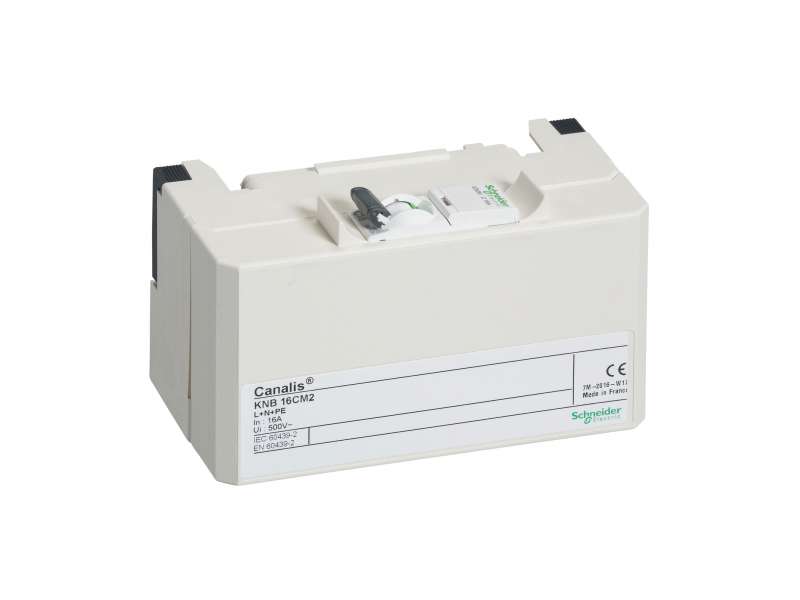

Schneider Electric Canalis - utična kutija sa C60 - 16 A - izbor faze - L + N + PE - IP41.
TAPOFF UNIT 16A LNPE...
VAT-exclusive price: 8.224,00 |
VAT-inclusive price: 9.868,80 |
TAPOFF UNIT 16A LNPE
| range of product | Canalis |
|---|---|
| range compatibility | KN busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility | Canalis KN busbar trunkingplug-in |
| [Ie] rated operational current | 16 A |
| protection type | Circuit breaker: iC60H |
| mounting mode | Plug-in with phase selection |
| tap-off unit polarity | L+N+PE |
| colour | White (RAL 9001) |
| device application | Low power distribution |
|---|---|
| provided equipment |
Circuit-breaker cable clamp |
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 4.6 kV |
| [Ui] rated insulation voltage |
400 V depending on protective device 500 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Cable clamp terminal 4 mm² flexible Cable clamp terminal 6 mm² rigid |
| door/cover opening side | Front |
| tap-off unit disconnection mode | By drawing out |
| standards |
IEC 61439-6 IEC 61439-1 |
| width | 79 mm |
| depth | 70 mm |
| height | 172 mm |
| net weight | 0.34 kg |
| earthing system |
TT TN-S |
|---|---|
| IP degree of protection | IP41 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 336 g |
| Package 1 Height | 7.4 cm |
| Package 1 width | 8.4 cm |
| Package 1 Length | 13.5 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNB16CM2H (1)
