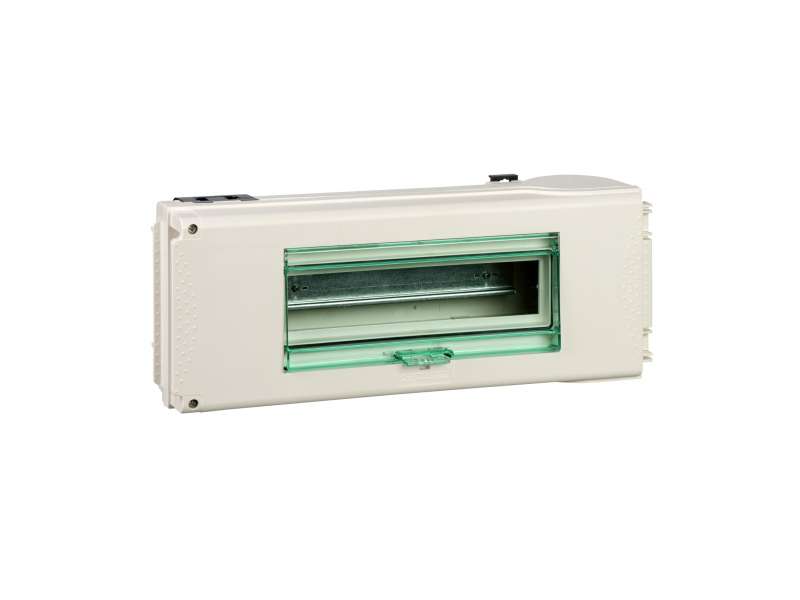

Schneider Electric Canalis - utična kutija za 4P modularni uređaj- 63A - 12 mod. od 18 mm - 3L+N+PE
TAPOFF UNIT 63A FOR MODULAR EQUIPMENT...
VAT-exclusive price: 24.098,00 |
VAT-inclusive price: 28.917,60 |
TAPOFF UNIT 63A FOR MODULAR EQUIPMENT
| range of product | Canalis |
|---|---|
| range compatibility | KN busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility | Canalis KN busbar trunkingplug-in |
| [Ie] rated operational current | 63 A |
| protection type | Circuit breaker: miniature circuit breaker (MCB) |
| mounting mode | Plug-in with fixed polarity |
| tap-off unit polarity | 3L+N+PE |
| colour | White (RAL 9001) |
| device application | Low power distribution |
|---|---|
| provided equipment |
Circuit-breaker to be ordered separately blanking plate |
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 4.6 kV |
| [Ui] rated insulation voltage |
400 V depending on protective device 500 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Tunnel terminal - ISO50 25 mm² flexible Tunnel terminal - ISO50 25 mm² rigid |
| door/cover opening side | Right |
| tap-off unit disconnection mode | By opening the door |
| standards |
IEC 61439-6 IEC 61439-1 |
| 18 mm pitches | 12 |
| width | 417 mm |
| depth | 106 mm |
| depth (door open) | 491 mm |
| height | 165 mm |
| net weight | 2.4 kg |
| earthing system |
TT TN-S IT |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.76 kg |
| Package 1 Height | 13.7 cm |
| Package 1 width | 16.6 cm |
| Package 1 Length | 41.9 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 44 |
| Package 2 Weight | 100 kg |
| Package 2 Height | 80 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNB63SM412
