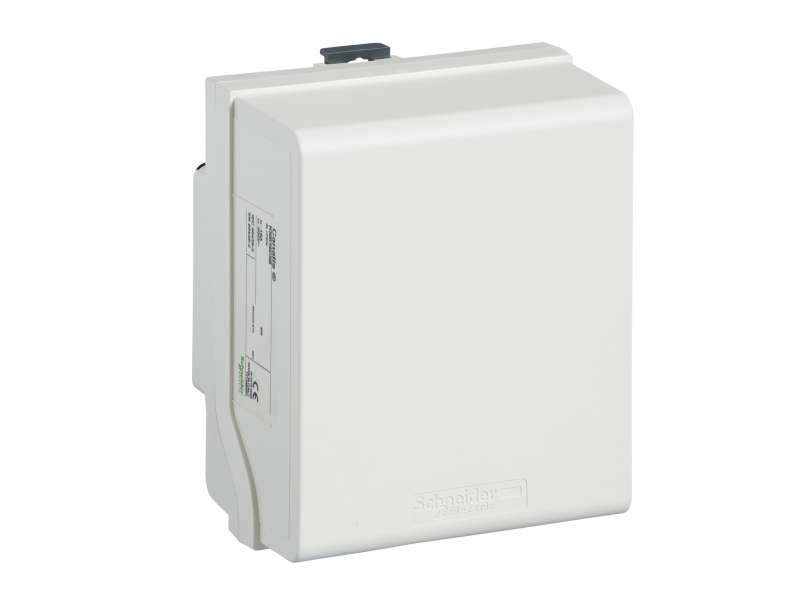

Schneider Electric Canalis - utična kutija za BS88 osigurače - A1 - 20 A - 3L + N + PE
TAPOFF UNIT 20A FOR BS FUSES...
VAT-exclusive price: 5.040,00 |
VAT-inclusive price: 6.048,00 |
TAPOFF UNIT 20A FOR BS FUSES
| range of product | Canalis |
|---|---|
| range compatibility | KN busbar trunking |
| product or component type | Tap-off unit |
| busbar trunking compatibility | Canalis KN busbar trunkingplug-in |
| [Ie] rated operational current | 20 A at 35 °C |
| protection type | Fuse isolator: BS88 fuse, size A1 conforming to BS |
| provided equipment |
Fuse to be ordered separately cable clamp |
| mounting mode | Plug-in with fixed polarity |
| tap-off unit polarity |
3L+PE 3L+N+PE |
| colour | White (RAL 9001) |
| device application | Low power distribution |
|---|---|
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 4.6 kV |
| [Ui] rated insulation voltage | 500 V depending on protective device |
| network frequency | 50/60 Hz |
| electrical connection |
Cable clamp terminal - ISO32 4 mm² flexible Cable clamp terminal - ISO32 6 mm² rigid |
| door/cover opening side | Front |
| tap-off unit disconnection mode | By drawing out |
| standards |
IEC 61439-1 IEC 61439-6 |
| width | 135 mm |
| depth | 90 mm |
| height | 165 mm |
| net weight | 0.6 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 720 g |
| Package 1 Height | 12.6 cm |
| Package 1 width | 13.6 cm |
| Package 1 Length | 16.6 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 112 kg |
| Package 2 Height | 80 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNB20CG5
