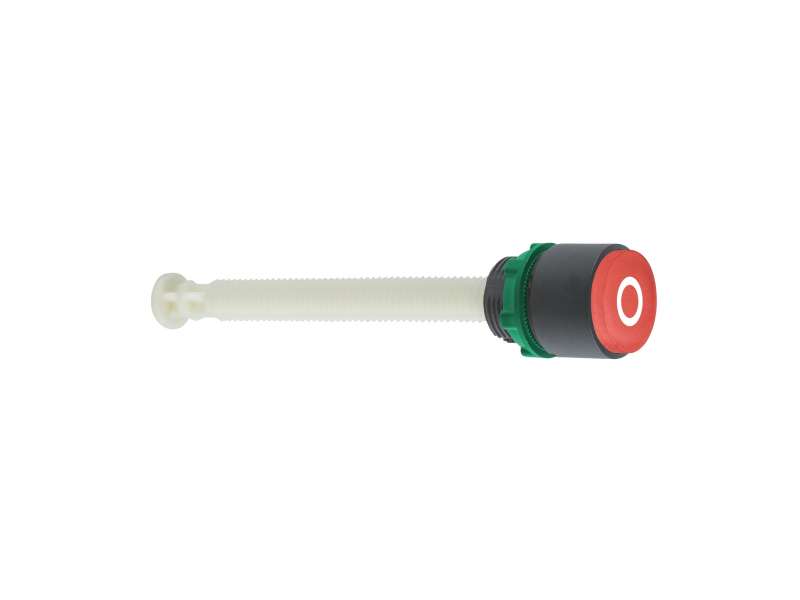

Schneider Electric Crveni odvojivi reset taster Ø22 oznaka ''O '' za udaljenost aktivacije 17..120 mm;XB5AL84101
Red projecting reset pushbutton Ø22 marked O for 17...120 mm actuation distance...
VAT-exclusive price: 1.340,00 |
VAT-inclusive price: 1.608,00 |
Red projecting reset pushbutton Ø22 marked O for 17...120 mm actuation distance
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Manual overload reset push-button
|
|
| device short name |
XB5
|
|
| bezel material |
Dark grey plastic
|
|
| fixing collar material |
Plastic
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| shape of signaling unit head |
Round
|
|
| operator profile |
Red projecting, O (white)
|
|
| activating distance |
17…120 mm
|
|
| device presentation |
Complete product
|
| height |
29 mm
|
|
|---|---|---|
| width |
29 mm
|
|
| depth |
120 mm
|
|
| net weight |
0.027 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| operating travel |
10 mm
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 4X
|
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-1
|
|
| product certifications |
UL listed
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
40 g
|
|
| Package 1 Height |
5.5 cm
|
|
| Package 1 width |
13.4 cm
|
|
| Package 1 Length |
4.5 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
80
|
|
| Package 2 Weight |
3.615 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
-
TeSys LRD XB5AL84101
