Schneider Electric Stalni ili isprekidani ton - svetleća crvena zujalica 24v ac/dc;XB5KS2B4
Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 24 V AC/DC...
VAT-exclusive price: 7.381,00 |
VAT-inclusive price: 8.857,20 |

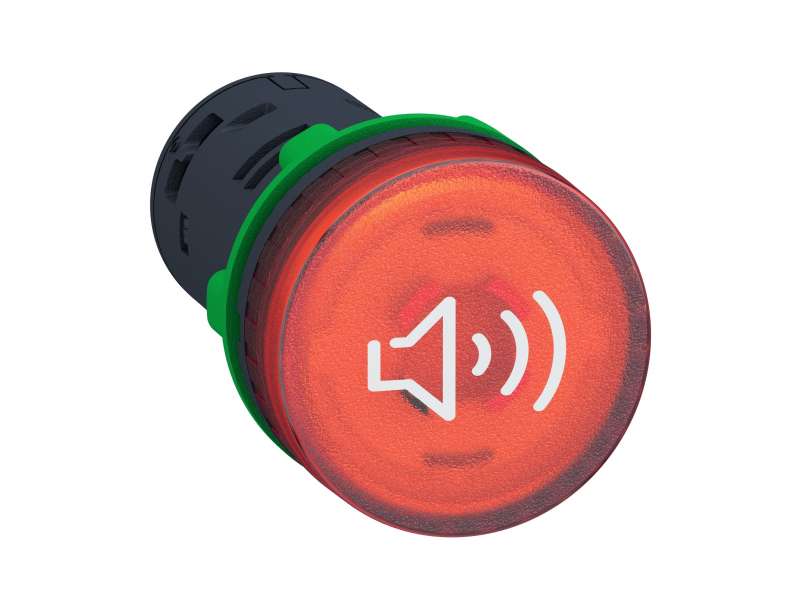

Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 24 V AC/DC
| range of product |
Harmony XB5
|
|
|---|---|---|
| bezel material |
Plastic
|
|
| product or component type |
Annunciator
|
|
| mounting diameter |
22 mm
|
|
| cap/operator or lens colour |
Red
|
| [Us] rated supply voltage |
24 V +/- 10 %
|
|
|---|---|---|
| supply circuit type |
AC/DC
|
|
| supply frequency |
50/60 Hz
|
|
| current consumption |
<= 58 mA
|
|
| signalling type |
Continuous or intermittent tone
|
|
| resistance to high pressure washer |
9000000 Pa at 80 °C, distance : 0.1 m
|
|
| height |
29 mm
|
|
| width |
29 mm
|
|
| depth |
55 mm
|
|
| net weight |
0.024 kg
|
| noise level |
90 dB at 6.8 kHz distance 0.1 m (+/- 10 %)
|
|
|---|---|---|
| protective treatment |
TH
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529
IP66 conforming to IEC 60529 IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 4X
NEMA 13 |
|
| IK degree of protection |
IK05 conforming to EN 50102
IK03 conforming to IEC 50102 |
|
| standards |
CSA C22.2 No 14
IEC 60947-5-1 EN 60947-5-4 JIS C8201-5-1 EN 60947-1 UL 508 IEC 60947-5-4 EN 60947-5-1 IEC 60947-1 JIS C8201-1 |
|
| product certifications |
UL listed
CSA BV |
| Package 1 Weight |
0.027 kg
|
|
|---|---|---|
| Package 1 Height |
0.330 dm
|
|
| Package 1 width |
0.340 dm
|
|
| Package 1 Length |
0.600 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Harmony XB5 XB5KS2B4
