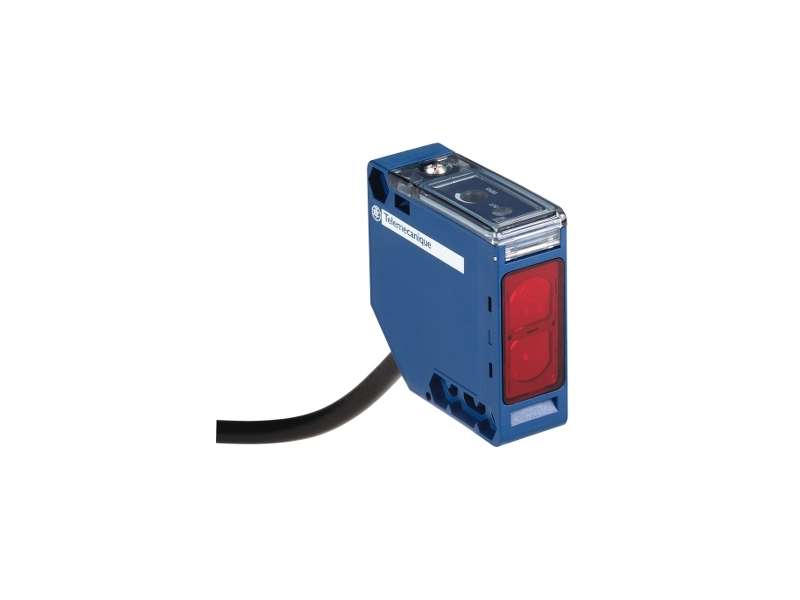

Schneider Electric Fotoelektrični senzor - XUK - difuzni - Sn 1m - 24..240VAC/DC - kabl 2m;XUK5ARCNL2

Photoelectric sensors XU, XUK, diffuse, Sn 1 m, 24...240VAC/DC, cable 2 m...

Brand: Schneider Electric
Product Code: XUK5ARCNL2
Availability: Check availability

VAT-exclusive price: 13.141,00

VAT-inclusive price: 15.769,20

Qnt:

Description
Specification

Photoelectric sensors XU, XUK, diffuse, Sn 1 m, 24...240VAC/DC, cable 2 m

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse
material	Plastic
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	5-wire
discrete output function	1 C/O
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared diffuse
[Sn] nominal sensing distance	1 m diffuse

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	1.5 m diffuse
output type	Relay
cable composition	5 x 0.34 mm²
wire insulation material	PVC
cable outer diameter	6 mm
status LED	1 LED (yellow) for output state 1 LED (green) for supply
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC
switching capacity in mA	3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
current consumption	<= 35 mA no-load
maximum power consumption in W	2 W AC
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Sensitivity adjustment
electrical durability	500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V
depth	50 mm
height	50 mm
width	18 mm
net weight	0.035 kg

Environment
product certifications	Ecolab CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	181.0 g
Package 1 Height	4.199 cm
Package 1 width	9.599 cm
Package 1 Length	13.137 cm
Unit Type of Package 2	S02
Number of Units in Package 2	22
Package 2 Weight	4.711 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
