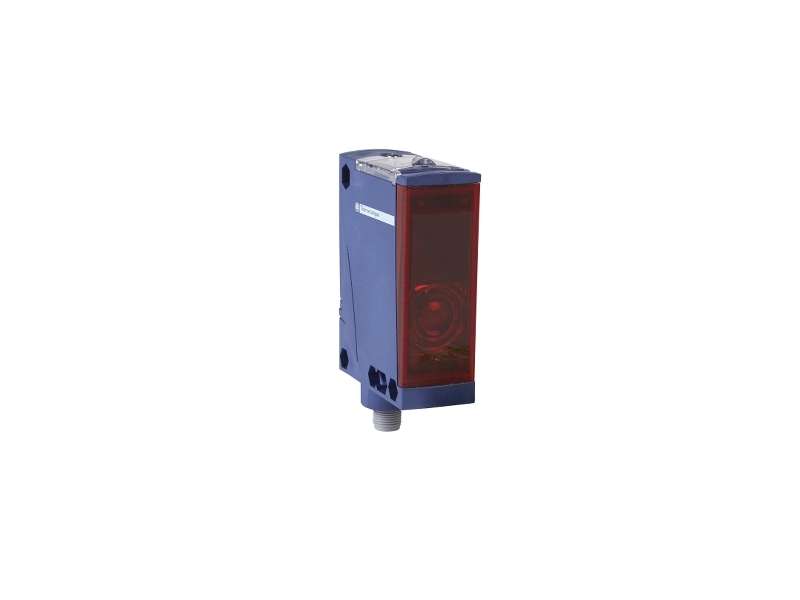

Schneider Electric Fotoelektrični senzor - XUX - prijemnik - Sn 40m - 12..24VDC - M12;XUX2APBNM12R

Photoelectric sensors XU, XUX, receiver, Sn 40 m, 12...24 VDC, M12...

Brand: Schneider Electric
Product Code: XUX2APBNM12R
Availability: Check availability

VAT-exclusive price: 14.487,00

VAT-inclusive price: 17.384,40

Qnt:

Description
Specification

Photoelectric sensors XU, XUX, receiver, Sn 40 m, 12...24 VDC, M12

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor receiver
sensor name	XUX
sensor design	Compact 92 x 71
detection system	Thru beam
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NC
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	40 m thru beam need a transmitter XUX0AKSAM12T

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	60 m thru beam
output type	Solid state
add on output	Without
status LED	1 LED (yellow) for output state 1 LED (green) for supply
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	15 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Sensitivity adjustment
depth	77 mm
height	92 mm
width	31 mm
net weight	0.2 kg

Environment
product certifications	CE CSA UL
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529 IP67 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	178.0 g
Package 1 Height	4.2 cm
Package 1 width	9.7 cm
Package 1 Length	13.2 cm
Unit Type of Package 2	S02
Number of Units in Package 2	22
Package 2 Weight	4.371 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 monthsxu
