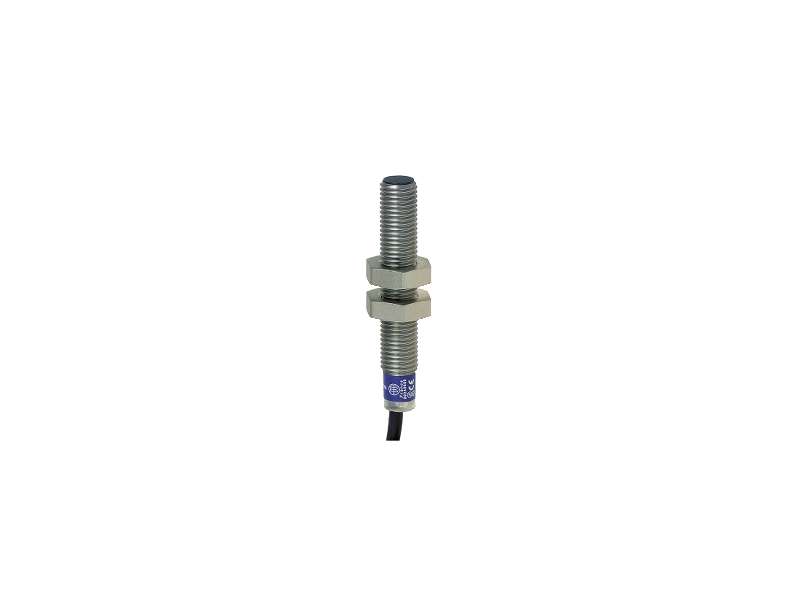

Schneider Electric Induktivni senzor XS1 M12 - D50mm - mesing - Sn2mm - 12..24VDC - kabl 2m;XS1M12AB120
Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12...24 VDC, cable 2 m...
VAT-exclusive price: 10.425,00 |
VAT-inclusive price: 12.510,00 |
Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12...24 VDC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | Application |
| sensor type | Inductive proximity sensor |
| electrical circuit type | Analog output |
| sensor name | XS1 |
| sensor design | Cylindrical M12 |
| size | 54 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Analogue |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 2 mm |
| discrete output function | 1 NC |
| output circuit type | DC |
| analogue output range | 4...20 mA |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| thread type | M12 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Nickel plated brass |
| operating zone | 0.2…2 mm |
| repeat accuracy | <= 3% of Sr |
| linearity error | +/- 2 mA |
| cable composition | 3 x 0.34 mm² |
| wire insulation material | PvR |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 1500 Hz |
| current consumption | 4 mA no-load |
| maximum output current drift | 10 % |
| marking | CE |
| threaded length | 42 mm |
| height | 12 mm |
| length | 50 mm |
| net weight | 0.075 kg |
| product certifications |
UL CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 85.0 g |
| Package 1 Height | 4.4 cm |
| Package 1 width | 11.2 cm |
| Package 1 Length | 11.8 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 2.175 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
