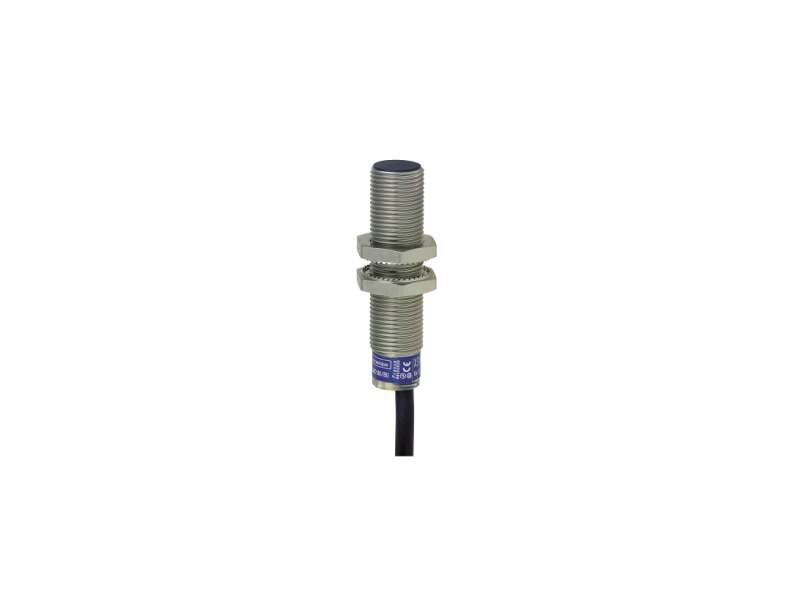

Schneider Electric Induktivni senzor XS1 M18 - D60mm - mesing - Sn5mm - 24..240VAC/DC - kabl 2m;XS1M18MA250
Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m...
VAT-exclusive price: 9.013,00 |
VAT-inclusive price: 10.815,60 |
Inductive proximity sensors XS, inductive sensor XS1 M18, L60mm, brass, Sn5mm, 24...240VAC/DC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| wiring configuration | 2-wire |
| output circuit type | AC/DC |
| protection type | Short-circuit protection multi voltage |
| device application | 2-wire DC short-circuit protection |
| sensor name | XS1 |
| sensor design | Cylindrical M18 |
| size | 60 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 5 mm |
| discrete output function | 1 NO |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage |
24...210 V DC 24...240 V AC 50/60 Hz |
| switching capacity in mA |
5...300 mA AC with overload and short-circuit protection 5...200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Nickel plated brass |
| operating zone | 0…4 mm |
| differential travel | 1...15% of Sr |
| cable composition | 2 x 0.34 mm² |
| wire insulation material | PvR |
| status LED |
Output state: 1 LED (yellow) Supply on: 1 LED (green) |
| maximum residual current | 1.5 mA open state |
| switching frequency |
<= 2000 Hz DC <= 25 Hz AC |
| maximum voltage drop | <5.5 V (closed state) |
| maximum delay first up | 70 ms |
| maximum delay response | 2 ms |
| maximum delay recovery | 4 ms |
| marking | CE |
| threaded length | 51 mm |
| length | 60 mm |
| net weight | 0.12 kg |
| product certifications |
UL CSA CCC |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-7 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 4.1 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30 cm |
| Package 2 Height | 30 cm |
| Package 2 Weight | 5.141 kg |
| Package 3 Height | 30 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Height | 13.5 cm |
| Package 1 Weight | 106.0 g |
| Number of Units in Package 2 | 44 |
| Unit Type of Package 2 | S03 |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
