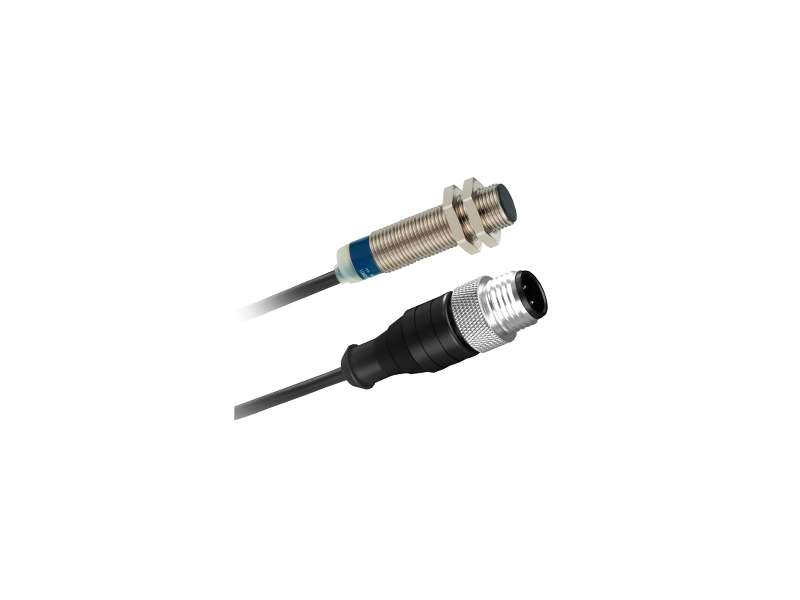

Schneider Electric Induktivni senzor XS6 M18 - D62mm - mesing - Sn8mm - 24..240VAC/DC - 7/8'' -0.15m;XS618B1MAL01U78
Inductive proximity sensors XS, inductive sensor XS6 M18, L62mm, brass, Sn8mm, 24...240VAC/DC, 7/8" -0.15 m...
VAT-exclusive price: 7.936,00 |
VAT-inclusive price: 9.523,20 |
Inductive proximity sensors XS, inductive sensor XS6 M18, L62mm, brass, Sn8mm, 24...240VAC/DC, 7/8" -0.15 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| sensor type | Inductive proximity sensor |
| sensor name | XS6 |
| sensor design | Cylindrical M18 |
| size | 62 mm |
| body type | Fixed |
| detector flush mounting acceptance | Flush mountable |
| material | Metal |
| type of output signal | Discrete |
| wiring technique | 2-wire |
| [Sn] nominal sensing distance | 8 mm |
| discrete output function | 1 NO |
| output circuit type | AC/DC |
| electrical connection | Remote male connector 7/8"16 UNF, 3 pins |
| cable length | 0.15 m |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| switching capacity in mA |
5...200 mA DC 5...300 mA AC |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 IP65 conforming to IEC 60529 IP69K conforming to DIN 40050 |
| thread type | M18 x 1 |
|---|---|
| detection face | Frontal |
| front material | PPS |
| enclosure material | Nickel plated brass |
| sensing range | > 4...8 mm |
| operating zone | 0…6.4 mm |
| differential travel | 1...15% of Sr |
| cable composition | 3 x 0.34 mm² |
| wire insulation material | PvR |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 20…264 V AC/DC |
| maximum residual current | 0.8 mA open state |
| switching frequency |
<= 1000 Hz DC <= 25 Hz AC |
| maximum voltage drop | <5.5 V (closed) |
| maximum delay first up | 25 ms |
| maximum delay response | 0.5 ms |
| maximum delay recovery | 0.5 ms |
| marking | CE |
| threaded length | 52 mm |
| length | 62 mm |
| net weight | 0.195 kg |
| product certifications |
UL CCC CSA |
|---|---|
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 13.2 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 20 cm |
| Package 2 Height | 1.8 cm |
| Package 2 Weight | 82 g |
| Package 1 Width | 9.7 cm |
| Package 1 Height | 4.2 cm |
| Package 1 Weight | 82 g |
| Number of Units in Package 2 | 1 |
| Unit Type of Package 2 | BAG |
| Package 2 Length | 15 cm |
| Warranty | 18 months |
|---|
