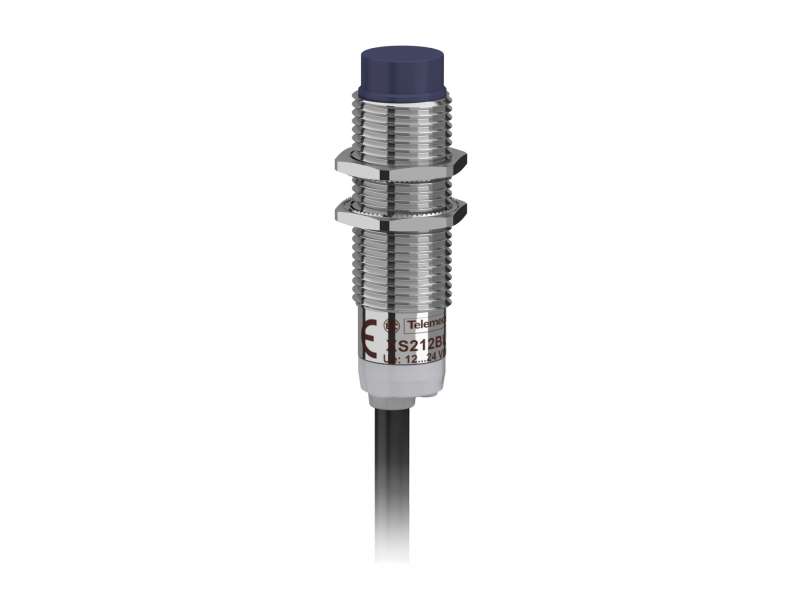

Schneider Electric Induktivni senzor XS2 M12 - L44mm - mesing - Sn4mm - 12..24VDC - kabl 2m
Inductive proximity sensors XS, inductive sensor XS2 M12, L44mm, brass, Sn4mm, 12...24 VDC, cable 2 m...
VAT-exclusive price: 3.583,00 |
VAT-inclusive price: 4.299,60 |
Inductive proximity sensors XS, inductive sensor XS2 M12, L44mm, brass, Sn4mm, 12...24 VDC, cable 2 m
| range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| series name | General purpose |
| Sensor type | Inductive proximity sensor |
| sensor name | XS2 |
| sensor design | Cylindrical M12 |
| size | 44 mm |
| body type | Fixed |
| Enclosure material | Nickel plated brass |
| type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 4 mm |
| discrete output function | 1 NO |
| discrete output type | PNP |
| electrical connection | Cable |
| cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| ISO thread | M12 x 1 |
|---|---|
| detection face | Frontal |
| detector flush mounting acceptance | Non flush mountable |
| Material | Metal |
| front material | PBT |
| operating zone | 0…3.2 mm |
| differential travel | 1...15% of Sr |
| output circuit type | DC |
| cable composition | 3 x 0.14 mm² |
| wire insulation material | PVC |
| status LED | Output state: 1 LED (yellow) |
| supply voltage limits | 10…36 V DC |
| switching frequency | <= 1200 Hz |
| maximum voltage drop | <2 V (closed) |
| current consumption | <= 10 mA no-load |
| maximum delay first up | 15 ms |
| maximum delay response | 0.15 ms |
| maximum delay recovery | 0.4 ms |
| marking | CE |
| threaded length | 26 mm |
| Length | 44 mm |
| Net weight | 0.07 kg |
| Product certifications |
UL CSA |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 70 g |
| Package 1 Height | 2 cm |
| Package 1 width | 12 cm |
| Package 1 Length | 14 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
Induktivni i kapacitivni senzori XS & XT XS212BLPAL2
