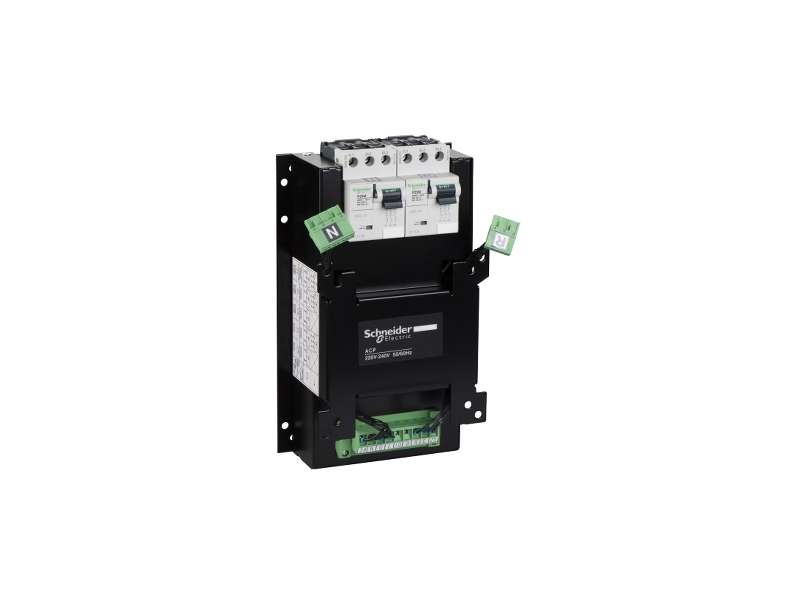

Schneider Electric Interfejs - za automatski kontroler - ACP - 380..415 V;29364
ACP control plate, Transferpact, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz...
Price on request
ACP control plate, Transferpact, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz
| range of product |
Compact NS630b...1600 NSX400...630 Compact NS100...630 MasterPact NW MasterPact NT NSX100...250 |
|---|---|
| range | ComPact |
| product or component type | Control plate |
| accessory / separate part category | Interlocking accessory |
| range compatibility |
ComPact NS circuit breaker ComPact NSX circuit breaker MasterPact NT circuit breaker MasterPact NT switch disconnector MasterPact NW circuit breaker MasterPact NW switch disconnector |
| device short name | ACP |
| [Us] rated supply voltage |
380...415 V AC at 50/60 Hz 440 V AC at 60 Hz |
| interlocked device |
MasterPact NW NSX400...630 NSX100...250 Compact NS630b...1600 Compact NS100...630 MasterPact NT |
|---|---|
| selection modes |
Circuit breaker on N Circuit breaker on R |
| input type | Contacts customer voluntary order to transfer to source R |
| output type | Contacts customer: indication of operation in automatic or stop mode |
| product compatibility |
Compact NSX400...630 Compact NSX100...250 Compact NS630b...1600 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.568 kg |
| Package 1 Height | 12.4 cm |
| Package 1 width | 16.4 cm |
| Package 1 Length | 27.9 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 16.174 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
