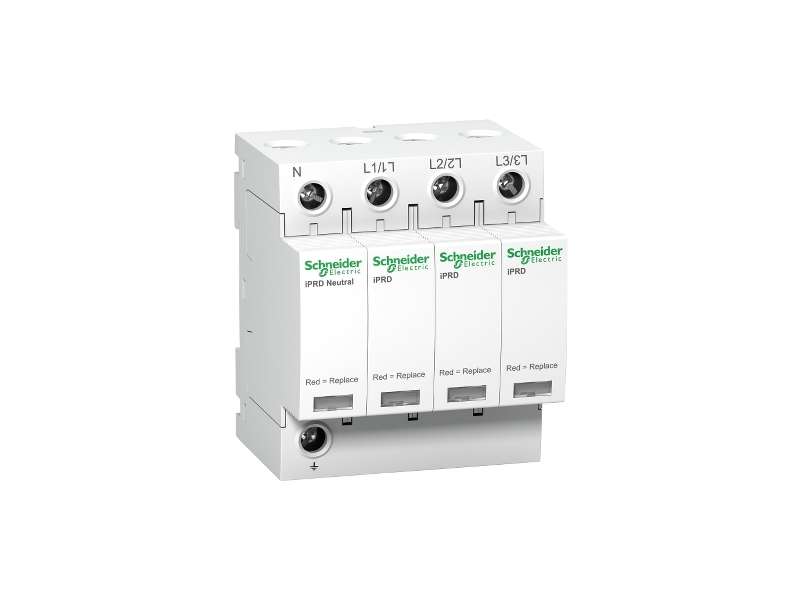

iPRD8 modular surge arrester - 3P + N - 350V

Main
range of product	Acti 9
product name	Acti9 iPRD
product or component type	Surge arrester with pluggable cartridge
device short name	IPRD8
device application	Distribution
standards	EN 61643-11:2012 IEC 61643-11:2011
product certifications	CE
quality labels	NF KEMA-KEUR
poles description	3P + N
remote signalling	Without
surge arrester type	Electrical distribution network
earthing system	TT TN-S

Complementary
surge arrester class type	Type 2 + 3
surge arrester technology	MOV + GDT
[Ue] rated operational voltage	230/400 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current	Common mode: 2.5 kA (L/PE) Common mode: 2.5 kA (N/PE) Differential mode: 2.5 kA (L/N)
[Imax] maximum discharge current	Common mode: 8 kA L/PE Common mode: 8 kA N/PE Differential mode: 8 kA L/N
[Uoc] open circuit voltage	10 kV type 3 common mode N/PE 10 kV type 3 differential mode L/N
[Uc] maximum continuous operating voltage	Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N
maximum [Up] voltage protection level	Common mode <1.1 kV type 3 N/PE Differential mode <1 kV type 2 L/N Differential mode <1.1 kV type 3 L/N Common mode <1.4 kV type 2 N/PE
[Ut] temporary overvoltage	337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand
disconnector device type	Associated circuit breaker iC60L 10 A curve C - Icu 25 kA Associated circuit breaker IC60N 10 A curve C - Icu 10 kA Associated circuit breaker iC60H 10 A curve C - Icu 15 kA Associated fuse gG 25 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA
9 mm pitches	8
height	85 mm
width	72 mm
depth	69 mm
net weight	0.414 kg
colour	White (RAL 9003)
[Ipe] Ground residual current	0.003 mA 0.6 mA
connections - terminals	Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm²
tightening torque	2.5 N.m

Environment
IK degree of protection	IK03 conforming to IEC 62262
relative humidity	5…95 %
operating altitude	2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	444.0 g
Package 1 Height	7.5 cm
Package 1 width	8.0 cm
Package 1 Length	9.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	27
Package 2 Weight	13.101 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	BB1
Number of Units in Package 3	3
Package 3 Weight	1.394 kg
Package 3 Height	8.0 cm
Package 3 width	9.5 cm
Package 3 Length	27.5 cm

Contractual warranty
Warranty	18 months
