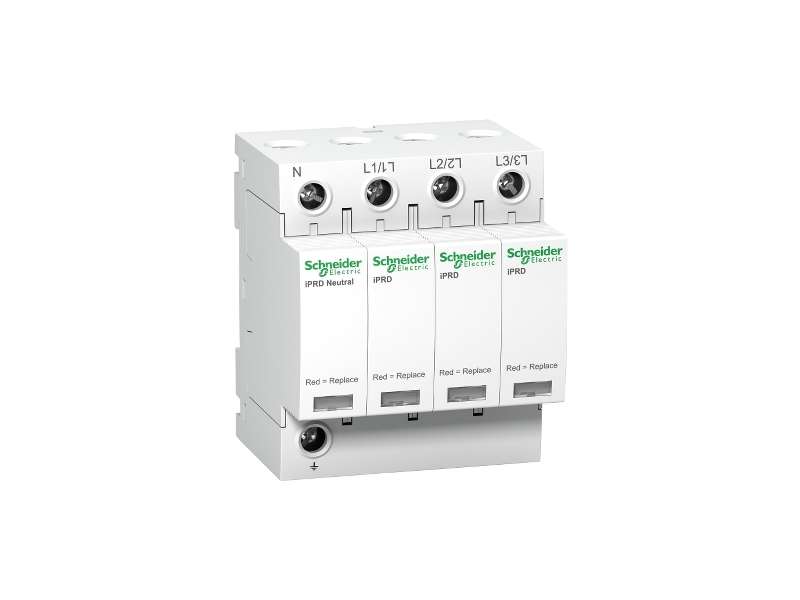

iPRD8r modular surge arrester - 3P + N - 350V - with remote transfert
| range of product | Acti 9 |
|---|---|
| product name | Acti9 iPRD |
| product or component type | Surge arrester with pluggable cartridge |
| device short name | IPRD8r |
| device application | Distribution |
| standards |
EN 61643-11:2012 IEC 61643-11:2011 |
| product certifications | CE |
| quality labels |
NF KEMA-KEUR |
| poles description | 3P + N |
| remote signalling | With |
| signal contacts composition | 1 SD (1 C/O) |
| surge arrester type | Electrical distribution network |
| earthing system |
TN-S TT |
| surge arrester class type | Type 2 + 3 |
|---|---|
| surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| [In] nominal discharge current |
Common mode: 2.5 kA (L/PE) Common mode: 2.5 kA (N/PE) Differential mode: 2.5 kA (L/N) |
| [Imax] maximum discharge current |
Common mode: 8 kA L/PE Common mode: 8 kA N/PE Differential mode: 8 kA L/N |
| [Uoc] open circuit voltage |
10 kV type 3 common mode N/PE 10 kV type 3 differential mode L/N |
| [Uc] maximum continuous operating voltage |
Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N |
| maximum [Up] voltage protection level |
Common mode <1.1 kV type 3 N/PE Differential mode <1 kV type 2 L/N Differential mode <1.1 kV type 3 L/N Common mode <1.4 kV type 2 N/PE |
| [Ut] temporary overvoltage |
337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand |
| disconnector device type |
Associated circuit breaker iC60L 10 A curve C - Icu 25 kA Associated circuit breaker IC60N 10 A curve C - Icu 10 kA Associated circuit breaker iC60H 10 A curve C - Icu 15 kA Associated fuse gG 25 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA |
| signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz |
| 9 mm pitches | 8 |
| height | 85 mm |
| width | 72 mm |
| depth | 69 mm |
| net weight | 0.421 kg |
| colour | White (RAL 9003) |
| [Ipe] Ground residual current |
0.6 mA 0.003 mA |
| connections - terminals |
Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| tightening torque | 2.5 N.m |
| IK degree of protection | IK03 conforming to IEC 62262 |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 453.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 216 |
| Package 2 Weight | 117.176 kg |
| Package 2 Height | 45.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 27 |
| Package 3 Weight | 13.359 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
