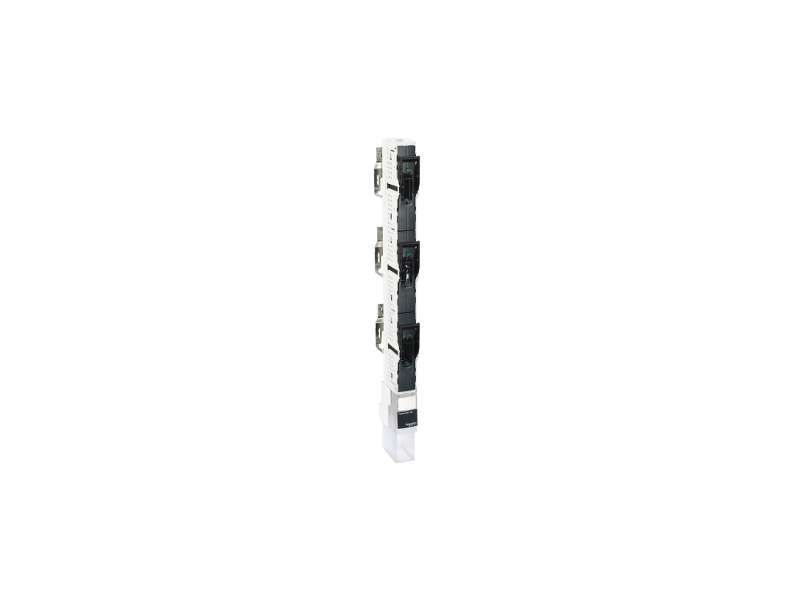

Fuse switch disconnector, FuPacT ISFL160, 160A, 1 pole switchable, connection to 185mm busbars, M12 screws
Main
|
range |
FuPacT |
|
product name |
FuPacT ISFL |
|
product or component type |
Fuse-switch disconnector |
|
device application |
Protection |
|
signalling function |
Separated fuse monitor |
Complementary
|
poles description |
3 x 1P switchable |
|
protected poles description |
3 x 1f |
|
fuse type |
DIN |
|
fuse size |
NH000
NH00 |
|
network type |
AC |
|
network frequency |
50/60 Hz |
|
control type |
Fuse carriers handle |
|
provision for padlocking |
Lead seal |
|
mounting support |
Busbars |
|
mounting mode |
Vertical |
|
mounting location |
One above the other |
|
[Ie] rated operational current |
AC-22B: 160 A AC 50/60 Hz 220/240 V
AC-22B: 160 A AC 50/60 Hz 380/415 V
AC-22B: 160 A AC 50/60 Hz 440/480 V
AC-22B: 160 A AC 50/60 Hz 500 V
AC-22B: 100 A AC 50/60 Hz 660/690 V
AC-23B: 160 A AC 50/60 Hz 220/240 V
AC-23B: 160 A AC 50/60 Hz 380/415 V |
|
[Ith] conventional free air thermal current |
160 A ( 40 °C ) power dissipation per fuse: 12 W |
|
[Ithe] conventional enclosed thermal current |
160 A at 40 °C, Power dissipation per fuse: 12 W |
|
maximum power |
19 W |
|
rated duty |
Uninterrupted |
|
[Ui] rated insulation voltage |
1000 V AC 50/60 Hz
1000 V DC |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz |
|
[Im] rated making and breaking capacity |
Icm 7.65 kA at 690 V |
|
suitability for isolation |
Yes conforming to EN/IEC 60947-3 |
|
contact position indicator |
No |
|
visible break |
Yes |
|
contact operation |
Single-break |
Environment
|
mechanical durability |
1400 cycles |
|
electrical durability |
AC-21B: 200 cycles 690 V AC 50/60 Hz
AC-22B: 200 cycles 500 V AC 50/60 Hz
AC-23B: 200 cycles 415 V AC 50/60 Hz |
|
[Icw] rated short-time withstand current |
5 kA for 1 s |
|
design |
Vertical design |
|
connections terminals |
Direct connection and screw connection |
|
connections - terminals |
Screw connection downstream M8 160 A
Direct connection upstream 160 A 185 mm |
|
tightening torque |
14 N.m |
|
height |
405 mm |
|
width |
50 mm |
|
depth |
123 mm |
|
standards |
EN/IEC 60947-1
EN/IEC 60947-3 |
|
product certifications |
IEC
CCC
EAC |
|
IP degree of protection |
IP20 conforming to IEC 60529 |
|
IK degree of protection |
IK07 conforming to EN 50102 |
|
pollution degree |
3 conforming to IEC 60947 |
|
ambient air temperature for operation |
-25…55 °C |
|
ambient air temperature for storage |
-50…85 °C |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
2.979 kg |
|
Package 1 Height |
7.0 cm |
|
Package 1 width |
19.0 cm |
|
Package 1 Length |
76.4 cm |
|
Unit Type of Package 2 |
P12 |
|
Number of Units in Package 2 |
50 |
|
Package 2 Weight |
160.95 kg |
|
Package 2 Height |
50.0 cm |
|
Package 2 width |
80.0 cm |
|
Package 2 Length |
120.0 cm |
