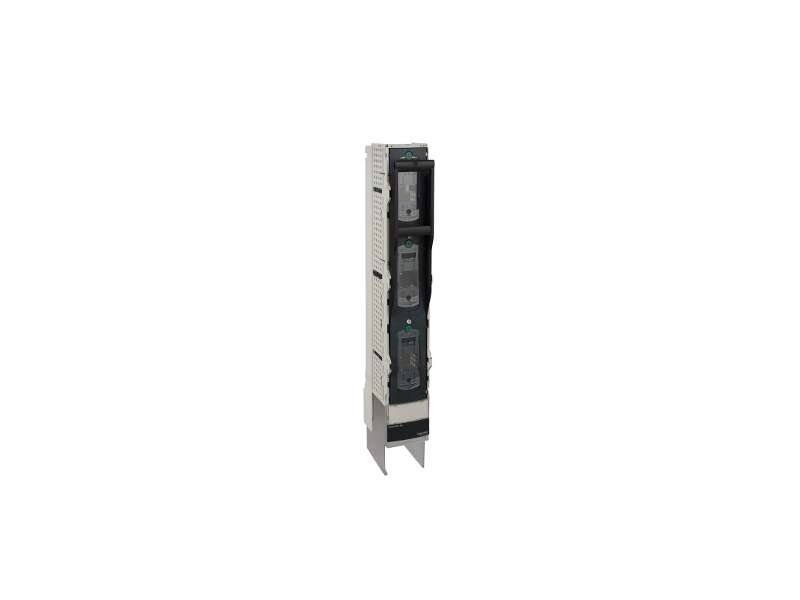

Fuse switch disconnector, FuPacT ISFL250, 250A, 3 poles switchable, connection to 185mm busbars, M12 screws
| range | FuPacT |
|---|---|
| product name | FuPacT ISFL |
| product or component type | Fuse-switch disconnector |
| device application | Protection |
| signalling function | Separated fuse monitor |
| poles description | 1 x 3P switchable |
|---|---|
| protected poles description | 1 x 3f |
| fuse type | DIN |
| fuse size | NH1 |
| network type | AC |
| network frequency | 50/60 Hz |
| control type | Fuse carriers handle |
| provision for padlocking | Padlockable |
| mounting support | Busbars |
| mounting mode | Vertical |
| mounting location | One above the other |
| [Ie] rated operational current |
AC-21B: 250 A AC 50/60 Hz 220/240 V AC-21B: 250 A AC 50/60 Hz 380/415 V AC-21B: 250 A AC 50/60 Hz 440/480 V AC-21B: 250 A AC 50/60 Hz 500 V AC-21B: 250 A AC 50/60 Hz 660/690 V AC-22B: 250 A AC 50/60 Hz 220/240 V AC-22B: 250 A AC 50/60 Hz 380/415 V AC-22B: 250 A AC 50/60 Hz 440/480 V AC-22B: 250 A AC 50/60 Hz 500 V AC-23B: 250 A AC 50/60 Hz 220/240 V AC-23B: 250 A AC 50/60 Hz 380/415 V |
| [Ith] conventional free air thermal current | 250 A ( 40 °C ) power dissipation per fuse: 23 W |
| [Ithe] conventional enclosed thermal current | 250 A at 40 °C, Power dissipation per fuse: 23 W |
| maximum power | 32 W |
| rated duty | Uninterrupted |
| [Ui] rated insulation voltage |
1000 V AC 50/60 Hz 1000 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Im] rated making and breaking capacity | Icm 30 kA at 690 V |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| contact position indicator | No |
| visible break | Yes |
| contact operation | Single-break |
| mechanical durability | 1400 cycles |
|---|---|
| electrical durability |
AC-21B: 200 cycles 690 V AC 50/60 Hz AC-22B: 200 cycles 500 V AC 50/60 Hz AC-23B: 200 cycles 415 V AC 50/60 Hz |
| [Icw] rated short-time withstand current | 15 kA for 1 s |
| electrical shock protection class | Class II front face |
| design | Vertical design |
| connections terminals | Direct connection and screw connection |
| connections - terminals |
Screw connection downstream M12 250 A Direct connection upstream 250 A 185 mm |
| tightening torque | 40 N.m |
| height | 741 mm |
| width | 100 mm |
| depth | 190 mm |
| standards |
EN/IEC 60947-1 EN/IEC 60947-3 |
| product certifications |
IEC CCC EAC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| pollution degree | 3 conforming to IEC 60947 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 5.17 kg |
| Package 1 Height | 11.0 cm |
| Package 1 width | 21.5 cm |
| Package 1 Length | 79.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 50 |
| Package 2 Weight | 270.5 kg |
| Package 2 Height | 122.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Warranty | 18 months |
|---|
