Schneider Electric Kaedra - interfejs orman - 4 otvora;13994

Kaedra - interface enclosure - 4 openings...

Brand: Schneider Electric
Product Code: 13994
Availability: Check availability

VAT-exclusive price: 5.524,00

VAT-inclusive price: 6.628,80

Qnt:

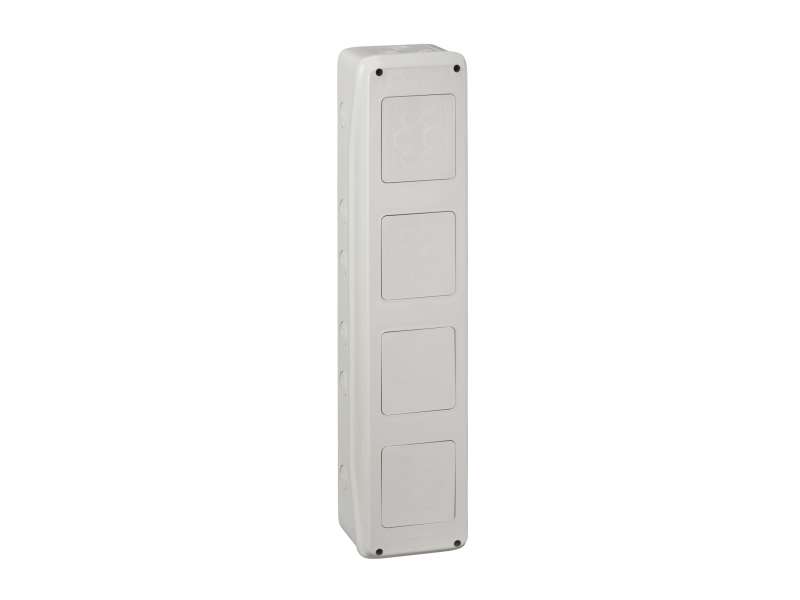

Kaedra - interface enclosure - 4 openings

Main
range	Kaedra
product or component type	Weatherproof enclosure
enclosure type	Interface enclosure
accessories included with enclosure	1 plate for 65 x 85 power outlets 4 plates for push-button controls
mounting plate description	Without mounting plate

Complementary
enclosure mounting	Surface
electrical insulation class	Class II Double insulation
number of openings of interface	4
number of plates	1 for 65 x 85 power outlets 4 for push-button controls
provided equipment	1 plate for 65 x 85 power outlet 4 plate for push-button control
type of front cover	Opaque
number of pre-cutouts PG ISO	3
enclosure material	Self-extinguishing polymer
base dimension	90 x 100 mm
width	138 mm
height	610 mm
depth	160 mm
internal depth	88 mm
colour	Enclosure: light grey (RAL 7035)

Environment
standards	EN 50262 IEC 670 IEC 60439-3 IEC 60529 EN 50102 IEC 60695-2-1
fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
overvoltage category	II
ambient air temperature for operation	-25…60 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.595 kg
Package 1 Height	13.5 cm
Package 1 width	15.8 cm
Package 1 Length	62 cm
Unit Type of Package 2	P12
Number of Units in Package 2	64
Package 2 Weight	114.08 kg
Package 2 Height	80 cm
Package 2 width	80 cm
Package 2 Length	120 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
