Schneider Electric Kaedra - višenamenska za utičnice- 1 x 8 modula - 236 x460 mm;13190
Kaedra - versatile for power outlet - 1 x 8 modules - 236 x460 mm...
VAT-exclusive price: 4.956,00 |
VAT-inclusive price: 5.947,20 |

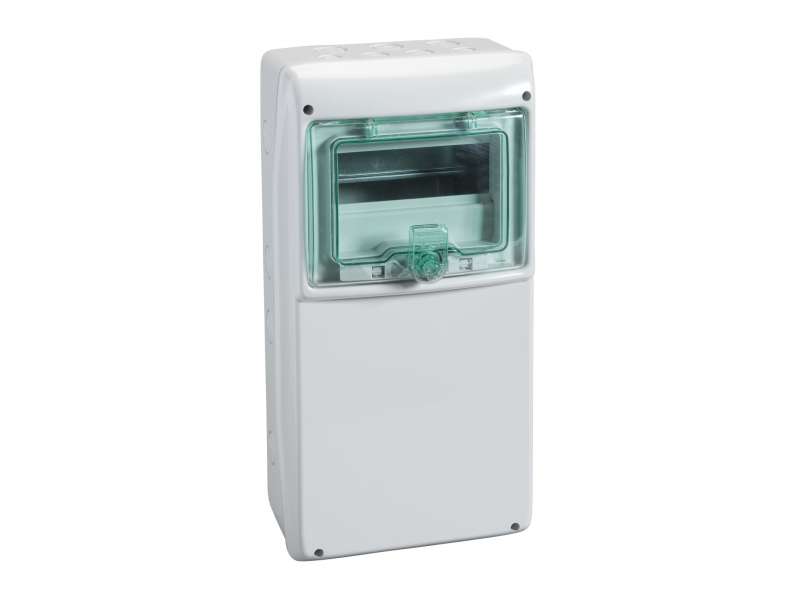

Kaedra - versatile for power outlet - 1 x 8 modules - 236 x460 mm
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Versatile enclosure for power outlet
|
|
| mounting plate description |
Slotted
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
8
|
|
| total number of 18 mm modules |
8
|
|
| number of horizontal rows |
1
|
|
| electrical insulation class |
Class II
Double insulation |
|
| type of front cover |
Transparent
|
|
| power dissipation in W |
15 W
|
|
| [In] rated current |
63 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
7
|
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Housing: self-extinguishing polymer
|
|
| net weight |
2 kg
|
|
| width |
236 mm
|
|
| height |
460 mm
|
|
| depth |
160 mm
|
|
| internal depth |
91 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
| standards |
EN 50262
IEC 670 EN 62262 IEC 60529 IEC 60695-2-1 IEC 60439-3 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…40 °C
|
| Package 1 Weight |
1.889 kg
|
|
|---|---|---|
| Package 1 Height |
4.700 dm
|
|
| Package 1 width |
2.560 dm
|
|
| Package 1 Length |
1.680 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure |
-
Pratika 13190
