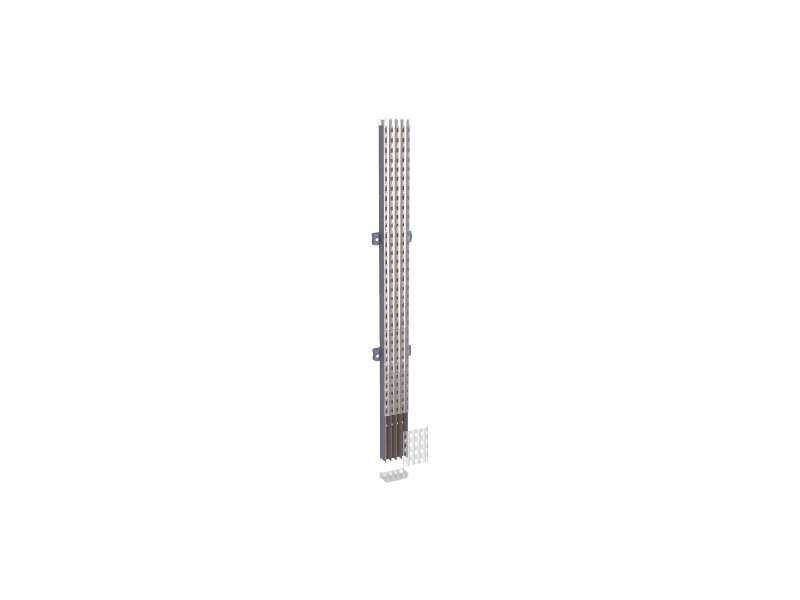

Schneider Electric Linergy BW 3P IPxxB izolovana sabirnica 400A L1400; LVS04118
Osnovne informacije Grupa proizvoda Linergy Grupa proizvoda Linergy Tip proizvoda ili komponente Sabirnica Ime proizvoda Linergy BW Kompatibilnost grupe proizvoda...
VAT-exclusive price: 32.270,00 |
VAT-inclusive price: 38.724,00 |
| Grupa proizvoda | Linergy |
|---|---|
| Grupa proizvoda | Linergy |
| Tip proizvoda ili komponente | Sabirnica |
| Ime proizvoda | Linergy BW |
| Kompatibilnost grupe proizvoda |
PrismaSeT (PrismaSeT G) orman PrismaSeT (PrismaSeT P) orman |
| Ip stepen zaštite | IPxx B |
| Opis sabirnice | Izolovana sabirnica |
| Količina po setu | Set od 1 |
| Broj polova | 3P |
|---|---|
| Pravac instalacije | Vertikalno, radni položaj: zadnji deo ormana |
| installation description |
Kućište - širina 650 mm Slobodnostojeći orman - širina 600 mm Nadzidni orman - širina 600 mm |
| [ui] nazivni napon izolacije | 750 V AC |
| [uimp] nazivni podnosivi impulsni napon | 8 kV |
| [ie] nazivna struja | 400 A |
| [icw] kratkotrajna podnosiva struja kratkog spoja | 20 kA (1 s) |
| [ipk] nazivna vršna struja kratkog spoja | 52,5 kA |
| I²t po aktivaciji | 400000 kA².s |
| Dopustiva struja | 400 A |
| Dužina | 1400 mm |
| Visina | 85 mm |
| Dubina | 45 mm |
| Masa proizvoda | 7,1 kg |
| Tip povezivanja sabirnice | M6 otvor sa navojem |
| Povezivanje | Povezivanje na svakih 25 mm |
| Standardi |
IEC 61439-1 IEC 61439-2 |
|---|---|
| Sertifikacija proizvoda | ASTA |
| Mehanička robusnost | Seizmički testovi ojačanom strukturom - 2.5G u skladu sa IEC 60068-2-57 |
Busbar, Linergy BW, 3P, 400A, insulated busbar, vertical, L1400mm
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar |
| Product name | Linergy BW |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| IP degree of protection | IPxx B |
| Busbar description | Insulated bar |
| Quantity per set | Set of 1 |
| Poles description | 3P |
|---|---|
| Installation direction | Vertical, operating position: rear |
| installation description |
Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 400 A |
| [Icw] rated short-time withstand current | 20 kA (1 s) |
| [Ipk] rated peak withstand current | 52.5 kA |
| I²t on activation | 400000 kA².s |
| Permissible current | 400 A |
| Length | 1400 mm |
| Height | 85 mm |
| Depth | 45 mm |
| Net weight | 7.1 kg |
| Type of busbar connection | M6 threaded hole |
| Connection pitch | Connection each 25 mm |
| Standards |
IEC 61439-1 IEC 61439-2 |
|---|---|
| Product certifications | ASTA |
| Mechanical robustness | Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 153.0 cm |
| Package 1 Weight | 7.216 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 29 cm |
| Package 2 Width | 120 cm |
| Package 2 Length | 201 cm |
| Package 2 Weight | 217 kg |
