Schneider Electric Naponski otcep, Linergy sabirnice, M10 pričvršćivanje vijkom, sa 2 umetka 6.35 mm, set od 20; LVS04229
Voltage tap-off, Linergy LGYE, M10 screw fixing, for 2 clips 6.35 mm, set of 20...
VAT-exclusive price: 3.976,00 |
VAT-inclusive price: 4.771,20 |

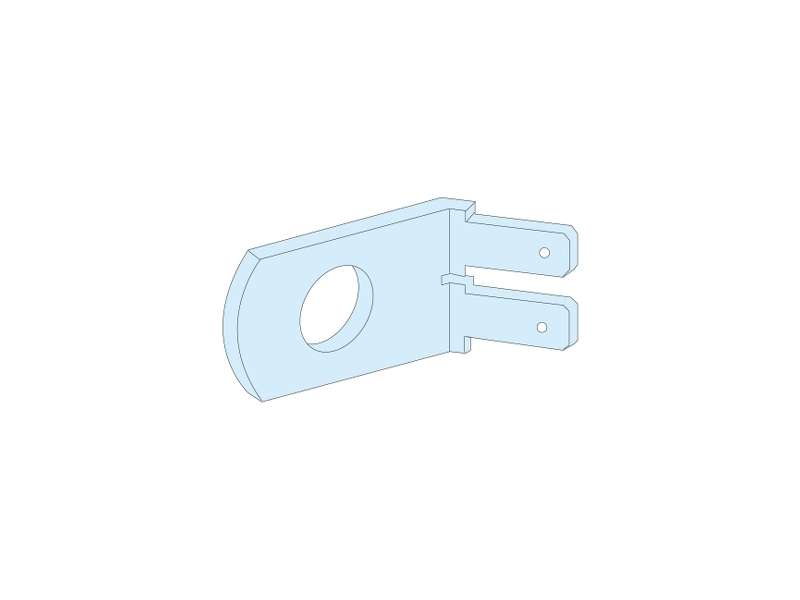

Voltage tap-off, Linergy LGYE, M10 screw fixing, for 2 clips 6.35 mm, set of 20
| Range | Linergy |
|---|---|
| Range of product | Linergy LGYE |
| Product or component type | Voltage tap-off |
| Accessory / separate part category | Busbar accessory |
| Range compatibility |
PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma iPM M) enclosure Linergy (Linergy LGYE) busbar |
| Product compatibility | Linergy busbar |
| Product destination | Busbar |
| Cubicle-device connection | M10 bolt |
|---|---|
| Connections - terminals | 2 Faston terminals |
| Quantity per set | Set of 20 |
| Height | 9.5 mm |
| Width | 17.5 mm |
| Depth | 0.84 mm |
| Net weight | 0.08 kg |
| Colour | Natural |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 7.0 cm |
| Package 1 Weight | 75.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 7.714 kg |
