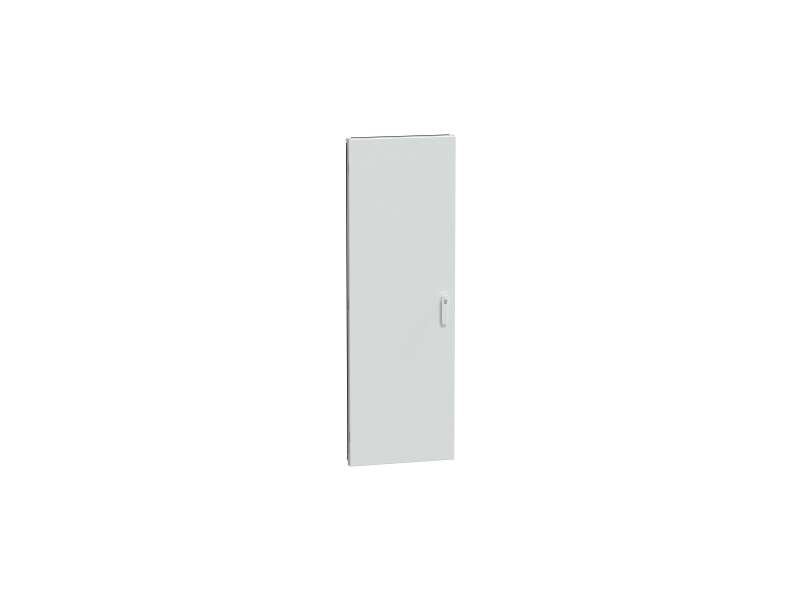

Schneider Electric Neprovidna vrata + okvir Š600 33M Prisma G IP55; LVS08329
PLAIN DOOR+FRAME W600 33M PRISMA G IP55...
VAT-exclusive price: 39.375,00 |
VAT-inclusive price: 47.250,00 |
PLAIN DOOR+FRAME W600 33M PRISMA G IP55
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge |
| type of door | Plain |
| IP degree of protection | IP55 |
| installation description |
Wall-mounted enclosure - width 600 mm Extension enclosure - width 600 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 3 |
| door opening angle | 180 ° |
| Number of vertical modules [50 mm] | 33 |
| Enclosure material | Treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1750 mm |
| Width | 600 mm |
| Depth | 26 mm |
| Product weight | 26.76 kg |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK10 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-1 IEC 61439-2 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 60.0 cm |
| Package 1 Length | 174.0 cm |
| Package 1 Weight | 26.75 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 86.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 561.0 kg |
