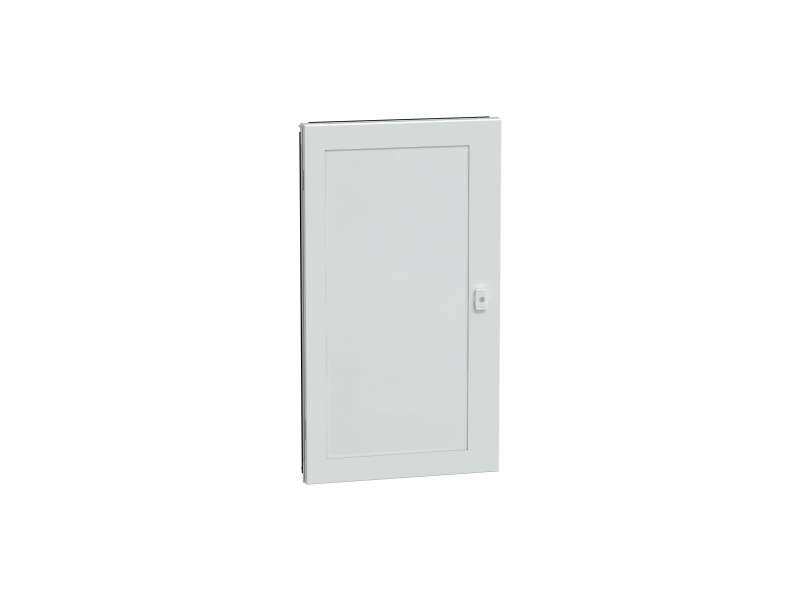

Schneider Electric Providna vrata + okvir Š600 19M Prisma G IP55; LVS08335

TRANSPARENT DOOR+FRAME W600 19M G IP55...

Brand: Schneider Electric
Product Code: LVS08335
Availability: Check availability

VAT-exclusive price: 39.901,00

VAT-inclusive price: 47.881,20

Qnt:

Description
Specification

TRANSPARENT DOOR+FRAME W600 19M G IP55

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Door
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
Provided equipment	Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge
type of door	Transparent
IP degree of protection	IP55

Complementary
installation description	Wall-mounted enclosure - width 600 mm Extension enclosure - width 600 mm
Door opening side	Reversible
Number of locks	3
door opening angle	180 °
Number of vertical modules [50 mm]	19
Enclosure material	Glass Treated sheet steel
Quantity per set	Set of 1
Height	1050 mm
Width	600 mm
Depth	26 mm
Net weight	15.76 kg
Material	Glass
Surface finish	Matt Textured
Colour	White (RAL 9003)

Environment
IK degree of protection	IK10 conforming to EN/IEC 62262
Standards	IEC 61439-1 IEC 61439-2
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	60.0 cm
Package 1 Length	104.0 cm
Package 1 Weight	15.45 kg
Unit Type of Package 2	P12
Number of Units in Package 2	10
Package 2 Height	88.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	166.5 kg
