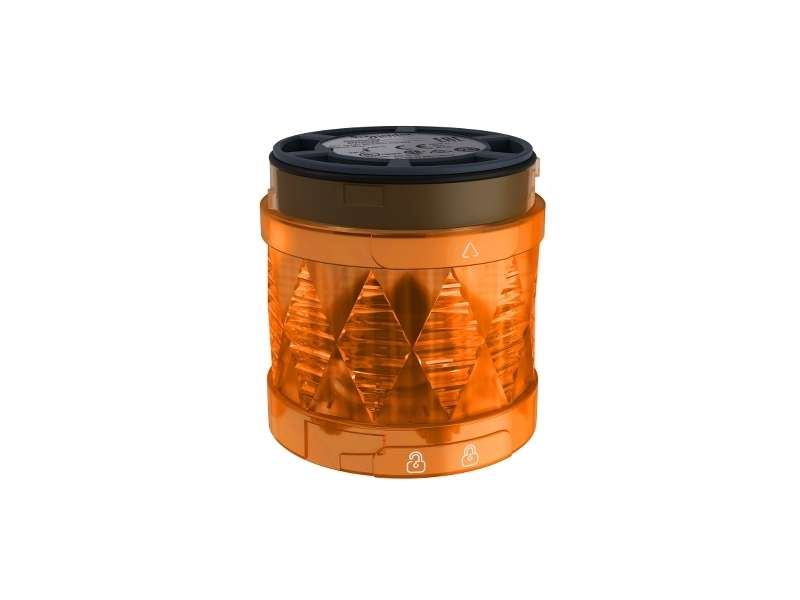

Schneider Electric Ø 60 mm svetleća LED jedinica - trajno osvetljenje - narandž.- IP65 - 24 V AC/DC;XVUC25
Harmony XVU, Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC...
VAT-exclusive price: 5.087,00 |
VAT-inclusive price: 6.104,40 |
Harmony XVU, Illuminated LED unit for modular tower lights, orange, Ø60, steady, IP65, 24 V AC/DC
| range of product | Harmony XVU |
|---|---|
| product or component type | Modular tower light |
| beacon or indicator bank unit type | LED unit |
| mounting diameter | 60 mm |
| component name | XVU |
| light source | LED, orange |
| device application |
Packaging machine Machine tools Automotive |
| signalling type | Steady |
|---|---|
| assembly style |
Customer assembly, up to 5 units Up to 4 units with buzzer |
| material |
PC (polycarbonate) V-2 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94 |
| [Us] rated supply voltage | 24 V AC/DC |
| maximum power dissipation in W | 2 W |
| current consumption | <= 40 mA |
| signalling type | Steady |
| length | 50 mm |
| net weight | 0.064 kg |
| product certifications |
CSA UL CE |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP65 |
| ambient air temperature for operation | -25…50 °C |
| vibration resistance | 2 gn |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 145.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 13.3 cm |
| Package 1 Length | 9.1 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 192 |
| Package 2 Weight | 35.84 kg |
| Package 2 Height | 60.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 70.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 24 |
| Package 3 Weight | 3.68 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
