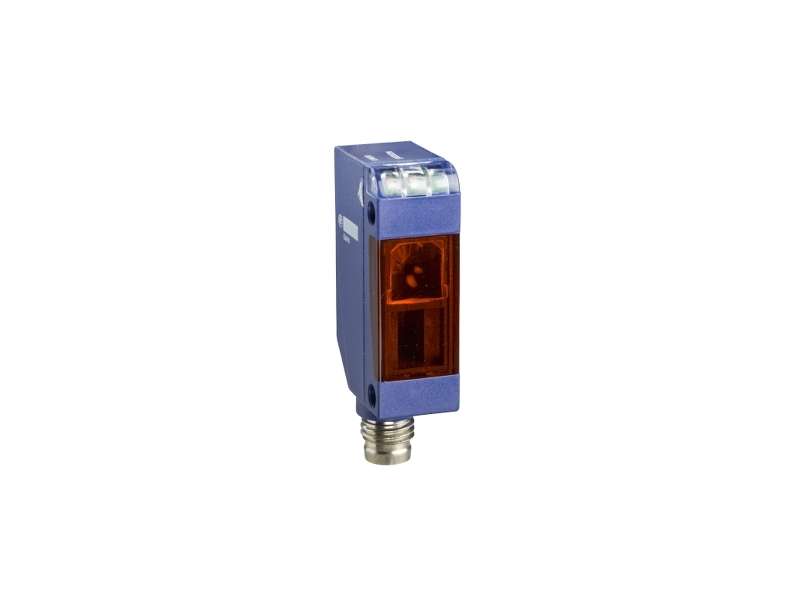

Schneider Electric Photoelectric sensors XU, XUM, emitter, 12...24 VDC, M8;XUM0AKSAM8T

Photoelectric sensors XU, XUM, emitter, 12...24 VDC, M8...

Brand: Schneider Electric
Product Code: XUM0AKSAM8T
Availability: Check availability

VAT-exclusive price: 7.549,00

VAT-inclusive price: 9.058,80

Qnt:

Description
Specification

Photoelectric sensors XU, XUM, emitter, 12...24 VDC, M8

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose multimode
electronic sensor type	Photo-electric sensor transmitter
sensor name	XUM
sensor design	Miniature
detection system	Thru beam
material	Plastic
supply circuit type	DC
wiring technique	3-wire
electrical connection	1 male connector M8, 4 pins
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	10 m thru beam need a receiver

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	14 m thru beam
add on input	Test by emission breaking
status LED	1 LED (green) for supply on
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	20 mA no-load
maximum delay first up	100 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Self-teaching
depth	20 mm
height	45 mm
width	12 mm
net weight	0.035 kg

Environment
product certifications	UL CSA CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	37.0 g
Package 1 Height	6.7 cm
Package 1 width	9.6 cm
Package 1 Length	4.2 cm
Unit Type of Package 2	S02
Number of Units in Package 2	44
Package 2 Weight	1.976 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
