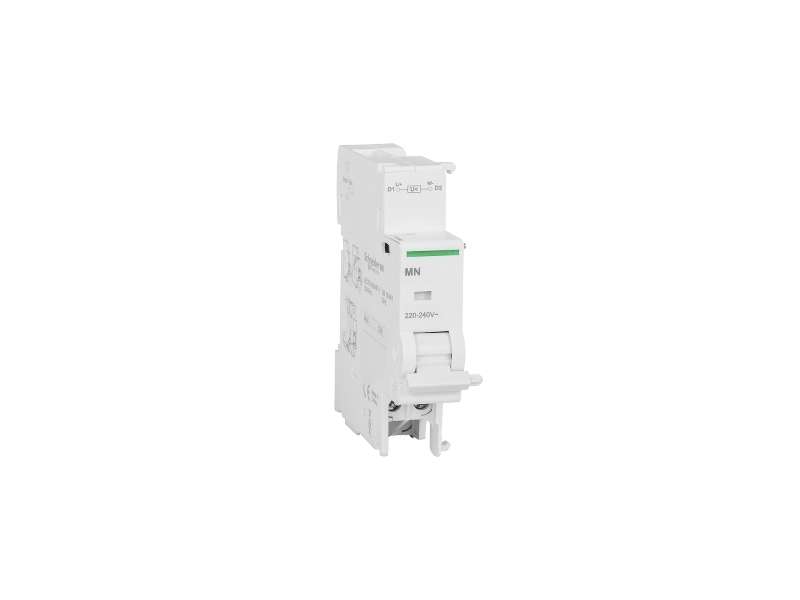

Schneider Electric Podnaponski okidač MNx 380-415VAC DC;A9N26971
Voltage release MNx 380-415Vac dc...
VAT-exclusive price: 14.864,00 |
VAT-inclusive price: 17.836,80 |
Voltage release MNx 380-415Vac dc
| range of product |
Librio Prodis Acti 9 Clario |
|---|---|
| product or component type | Undervoltage release |
| device short name | MNx |
| [Uc] control circuit voltage | 400 V AC 50/60 Hz |
| control type | With external feeding |
| 9 mm pitches | 2 |
| range compatibility |
Acti 9 iDPN Acti 9 C120 Acti 9 C40 Acti9 C60H-DC Acti 9 C60NA-DC Acti 9 C60PV-DC Acti9 DPN Vigi Acti 9 DT40 Acti 9 DT60 Acti9 ID C40 Acti9 IDc Acti9 ITG40 Acti9 ID Acti 9 DPN |
|---|---|
| local signalling | Action indicator |
| mounting mode | Fixed |
| mounting support | 35 mm symmetrical DIN rail |
| comb busbar and distribution block compatibility | Top: YES |
| height | 82.5 mm |
| width | 18 mm |
| depth | 73.5 mm |
| net weight | 73 g |
| colour | White |
| connections - terminals |
Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule Screw clamp terminal (bottom) - 1 cable(s) 0.5…2.5 mm² - rigid |
| wire stripping length | 9 mm for bottom connection |
| tightening torque | 1 N.m bottom |
| compatibility code | MNx |
| standards | EN/IEC 60947-5-1 |
|---|---|
| product certifications |
ASTA LCIE KEMA ASEFA |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| relative humidity | 95 % at 55 °C |
| ambient air temperature for operation | -25…50 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 85.0 g |
| Package 1 Height | 3.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 72 |
| Package 2 Weight | 7.144 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 8 |
| Package 3 Weight | 736.0 g |
| Package 3 Height | 8.5 cm |
| Package 3 width | 10.0 cm |
| Package 3 Length | 26.5 cm |
| Warranty | 18 months |
|---|
