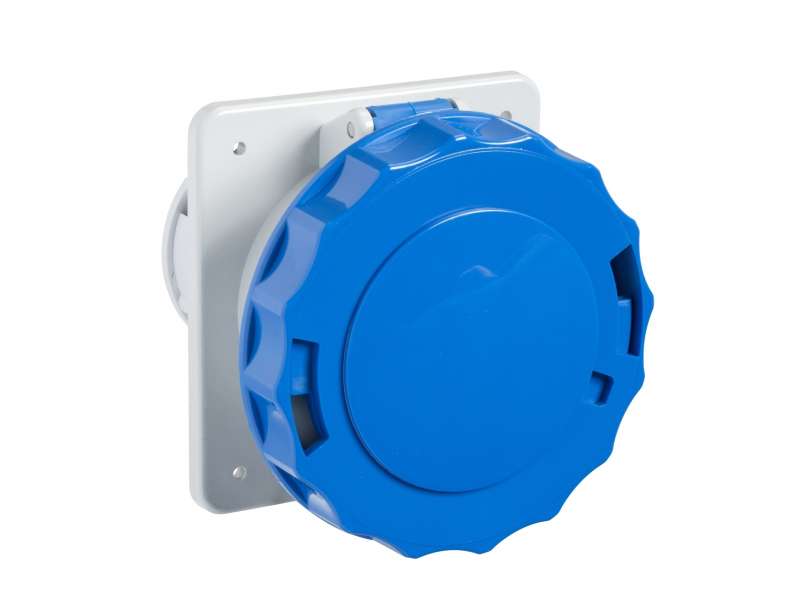

Schneider Electric PratiKa utičnica - vijčana - ravna - 16A - 2P + E - 200...250 V AC - panel ; PKF16G723
PratiKa socket - screw - straight - 16A - 2P + E - 200...250 V AC - panel...
VAT-exclusive price: 2.525,00 |
VAT-inclusive price: 3.030,00 |
PratiKa socket - screw - straight - 16A - 2P + E - 200...250 V AC - panel
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Socket
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
2P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Panel-mounted
|
|
|---|---|---|
| plug, socket, control station shape |
Straight
|
|
| [In] rated current |
16 A
|
|
| [Ue] rated operational voltage |
200...250 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
1…4 mm²
|
|
| net weight |
0.148 kg
|
|
| base dimension |
65 x 85 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Blue
|
| standards |
IEC 60309-1
IEC 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
136 g
|
|
| Package 1 Height |
7.1 cm
|
|
| Package 1 width |
7.6 cm
|
|
| Package 1 Length |
8.9 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
1.472 kg
|
|
| Package 2 Height |
12.4 cm
|
|
| Package 2 width |
26.8 cm
|
|
| Package 2 Length |
26.8 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
30
|
|
| Package 3 Weight |
4.903 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
-
Pratika PKF16G723
