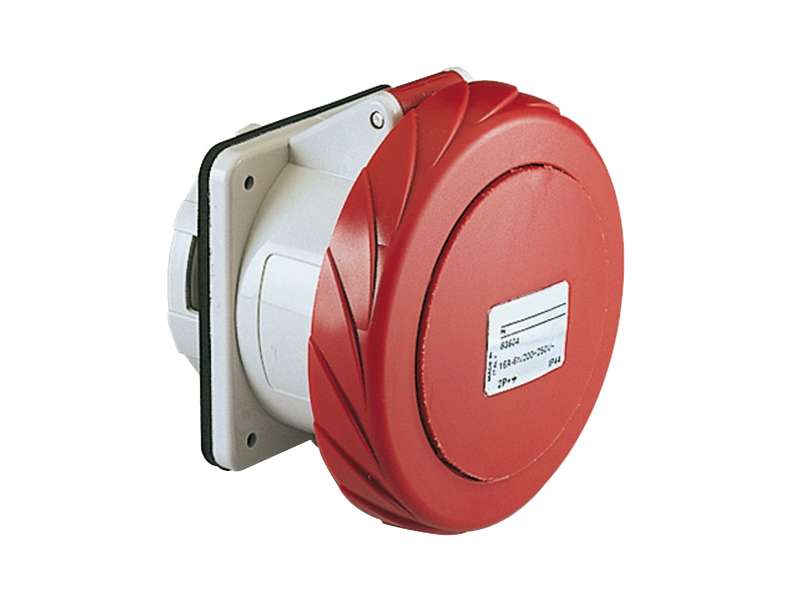

Schneider Electric PratiKa utičnica - vijčana - ravna - 16A - 2P + E - 380...415 V AC - panel ; PKF16G733
PratiKa socket - screw - straight - 16A - 2P + E - 380...415 V AC - panel...
VAT-exclusive price: 2.120,74 |
VAT-inclusive price: 2.544,89 |
PratiKa socket - screw - straight - 16A - 2P + E - 380...415 V AC - panel
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Socket
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
2P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Panel-mounted
|
|
|---|---|---|
| plug, socket, control station shape |
Straight
|
|
| [In] rated current |
16 A
|
|
| [Ue] rated operational voltage |
380...415 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
9 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
1…4 mm²
|
|
| net weight |
0.148 kg
|
|
| base dimension |
65 x 85 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Red
|
| standards |
IEC 60309-1
IEC 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
120 g
|
|
| Package 1 Height |
8.8 cm
|
|
| Package 1 width |
26.3 cm
|
|
| Package 1 Length |
27 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Pratika PKF16G733
