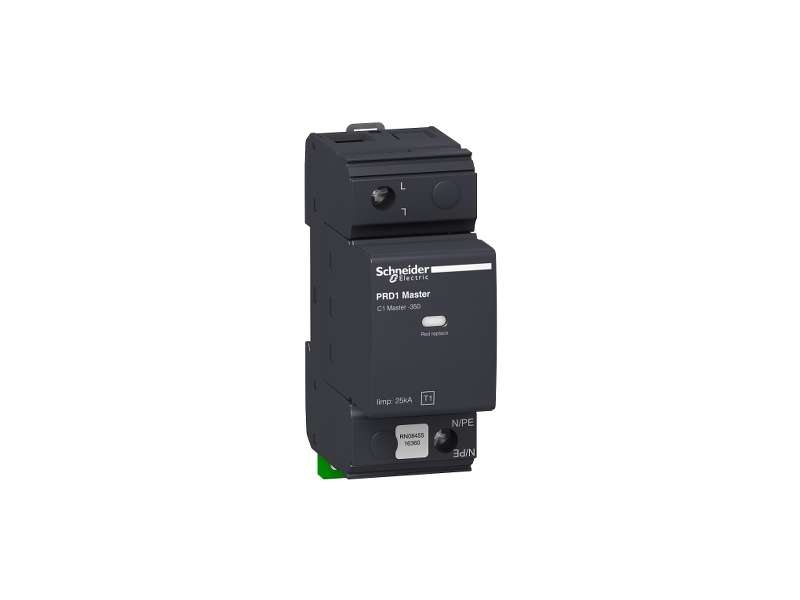

Schneider Electric PRD1 Master modularni odvodnik prenapona - 1 pol - 350V - sa daljinskim transferom;16360
PRD1 Master modular surge arrester - 1 pole - 350V - with remote transfer...
Price on request
PRD1 Master modular surge arrester - 1 pole - 350V - with remote transfer
| range of product | Acti 9 |
|---|---|
| product name | Acti9 PRD1 Master |
| product or component type | Surge arrester with pluggable cartridge |
| device short name | PRD1 Master |
| device application | Distribution |
| standards |
EN 61643-11:2012 IEC 61643-11:2011 |
| product certifications | CE |
| quality labels | KEMA-KEUR |
| poles description | 1P |
| remote signalling | With |
| signal contacts composition | 1 SD (1 C/O) |
| surge arrester type | Electrical distribution network |
| earthing system |
TN-C IT 230 TT |
| surge arrester class type | Type 1 |
|---|---|
| surge arrester technology | Spark gap |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50 Hz |
| [In] nominal discharge current | Common mode: 25 kA (L/PE) |
| [Iimp] impulse current | Common mode: 25 kA L/PE 12.5 A.s |
| [Uc] maximum continuous operating voltage | Common mode: 350 V L/PE |
| maximum [Up] voltage protection level | Common mode <1.5 kV type 2 L/PE |
| [If] follow current | 50 kA common mode L/PE |
| disconnector device type |
Associated fuse gG 315 A standard Associated circuit breaker Compact NSX100F 100 A curve C - Icu 36 kA Associated circuit breaker Compact NSX100N 100 A curve C - Icu 50 kA |
| signalling circuit voltage | 1 A/250 V AC 50/60 Hz |
| 9 mm pitches | 4 |
| height | 90 mm |
| width | 35.8 mm |
| depth | 70 mm |
| net weight | 0.303 kg |
| colour | Anthracite grey (RAL 7016) |
| material | PBT (polybutylene terephthalate) |
| connections - terminals |
Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| tightening torque | 4.5 N.m |
| IK degree of protection | IK05 conforming to IEC 62262 |
|---|---|
| relative humidity | 5…90 % |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 418.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 4.5 cm |
| Package 1 Length | 11.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 23 |
| Package 2 Weight | 10.002 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
