Schneider Electric Pre-ožičeni MKS rasklopnik, ComPact NSXm, nazivni napon 12 VDC;LV426870
Pre-wired shunt trip release MX, ComPacT NSXm, 12VDC...
Price on request

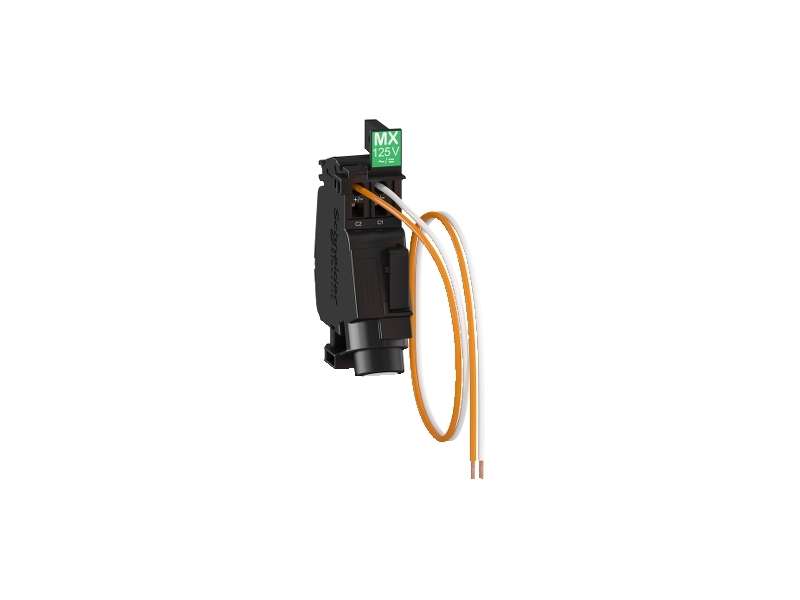

Pre-wired shunt trip release MX, ComPacT NSXm, 12VDC
| range | ComPact |
|---|---|
| device short name | MX |
| product or component type | Voltage release |
| device application | Control |
| range compatibility |
ComPacT NSXm new generation ComPact NSXm PowerPact B |
| voltage release type |
Opening coil Shunt trip release |
| control type | Standard |
| [Uc] control circuit voltage | 12 V DC |
| Operating threshold | 0.7 Un opening |
|---|---|
| response time | < 50 ms |
| control signal type |
Impulse Maintained |
| impulse duration | >= 20 ms |
| auxiliary connection terminal | Pre-wired 0…0.8 mm² (AWG 18)stranded copper |
| wire stripping length | 8 mm |
| Cable length | 1 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 45.0 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 6.0 cm |
| Package 1 Length | 8.4 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 120 |
| Package 2 Weight | 5.4 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
