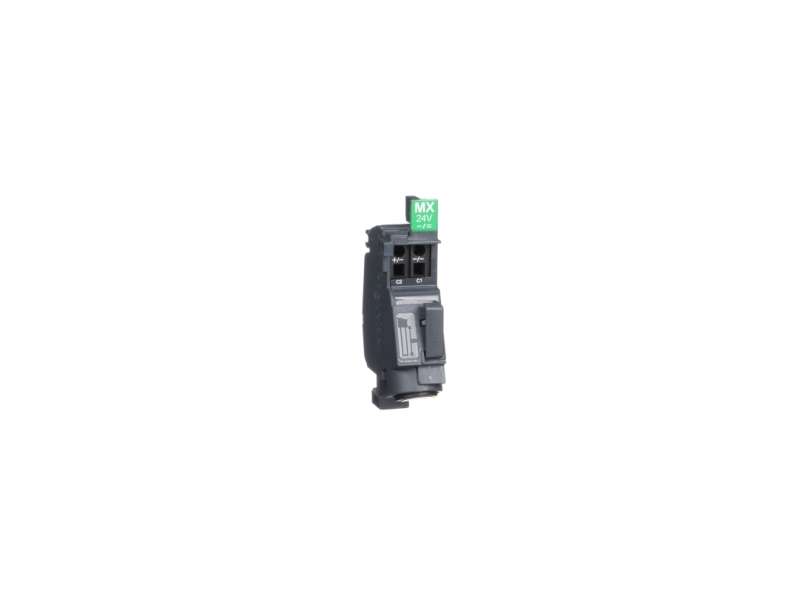

Schneider Electric Standardno MKS okidač, Compact NSXm, nazivni napon 24 VDC, 24 VAC 50/60Hz;LV426841
Standard shunt trip release MX, ComPacT NSXm, 24VDC, 24VAC 50/60Hz...
Price on request
Standard shunt trip release MX, ComPacT NSXm, 24VDC, 24VAC 50/60Hz
| range | ComPact |
|---|---|
| device short name | MX |
| product or component type | Voltage release |
| device application | Control |
| range compatibility |
ComPacT NSXm new generation ComPact NSXm PowerPact B |
| voltage release type |
Opening coil Shunt trip release |
| control type | Standard |
| [Uc] control circuit voltage |
24 V AC 50/60 Hz 24 V DC |
| Operating threshold | 0.7 Un opening |
|---|---|
| response time | < 50 ms |
| control signal type |
Impulse Maintained |
| impulse duration | >= 20 ms |
| auxiliary connection terminal | Spring |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 36.0 g |
| Package 1 Height | 1.5 cm |
| Package 1 width | 5.7 cm |
| Package 1 Length | 6.3 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 120 |
| Package 2 Weight | 8.5 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
